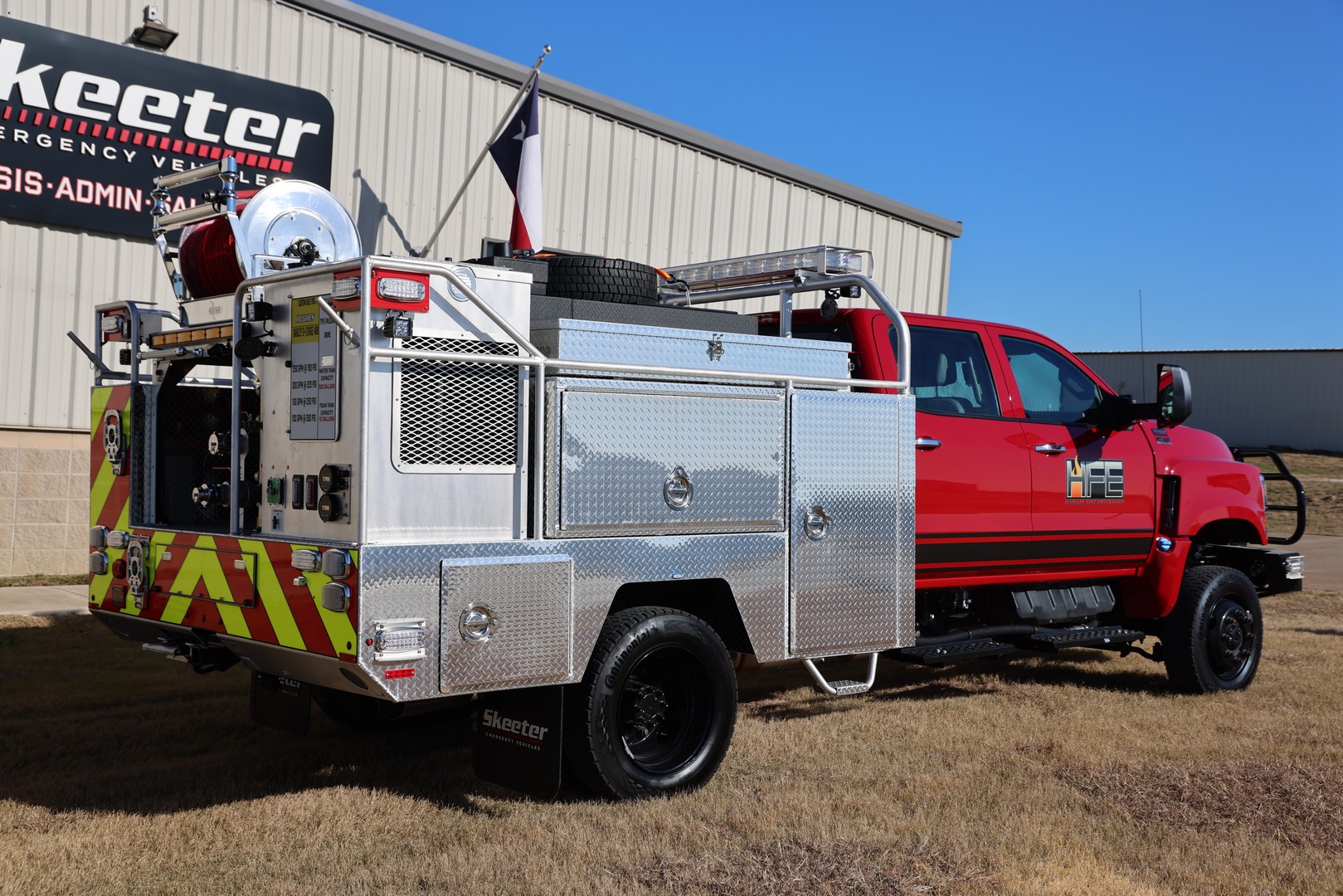

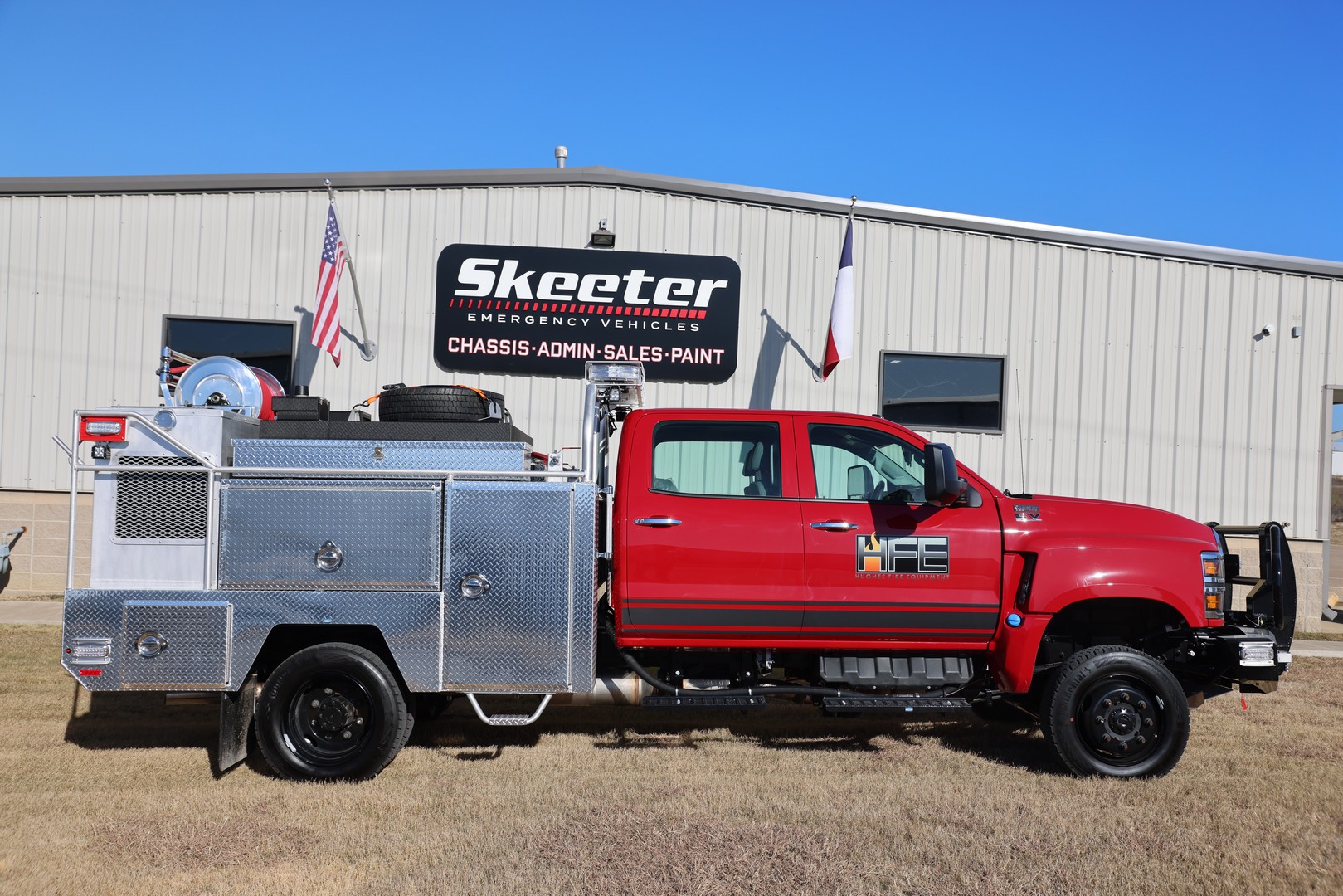

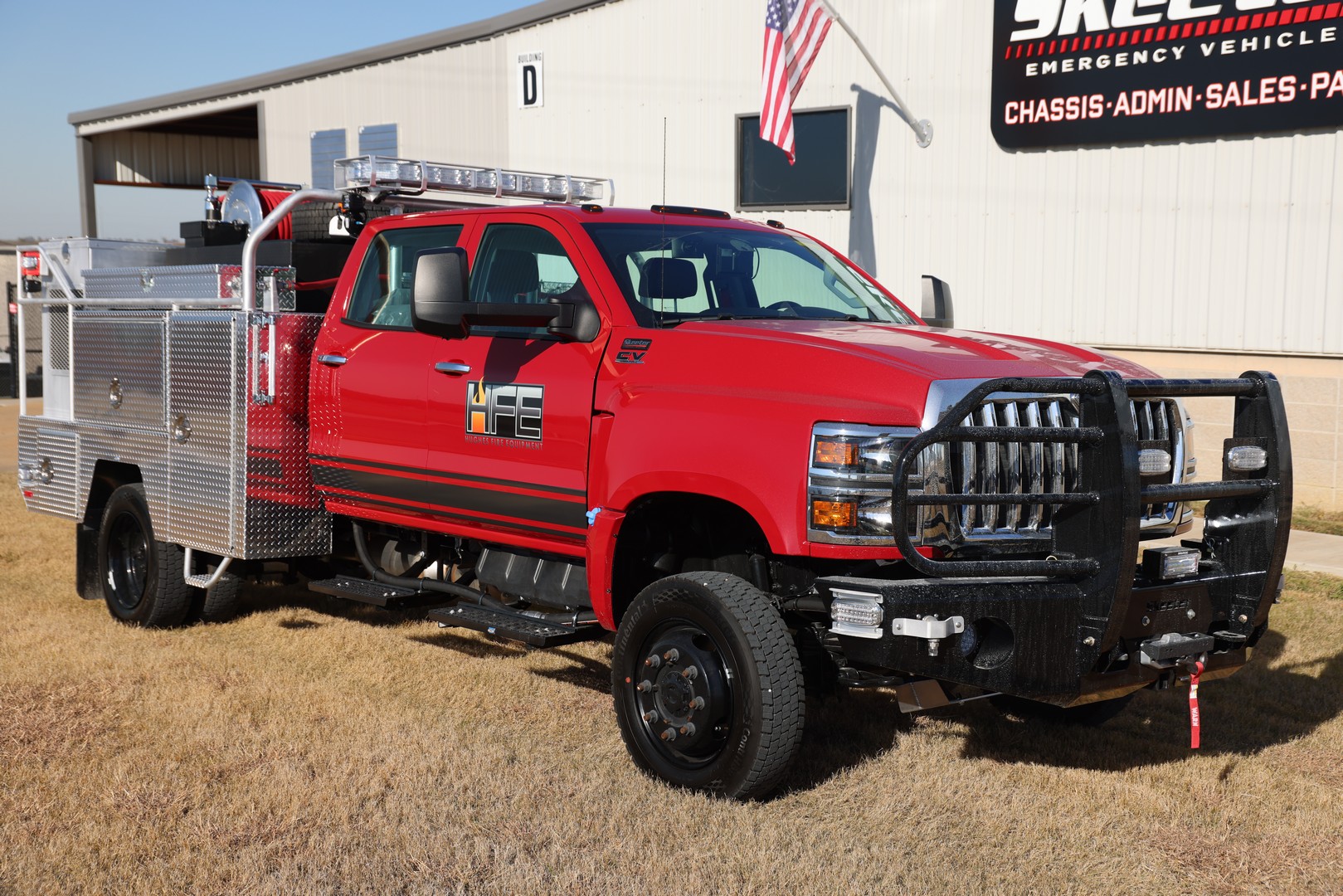

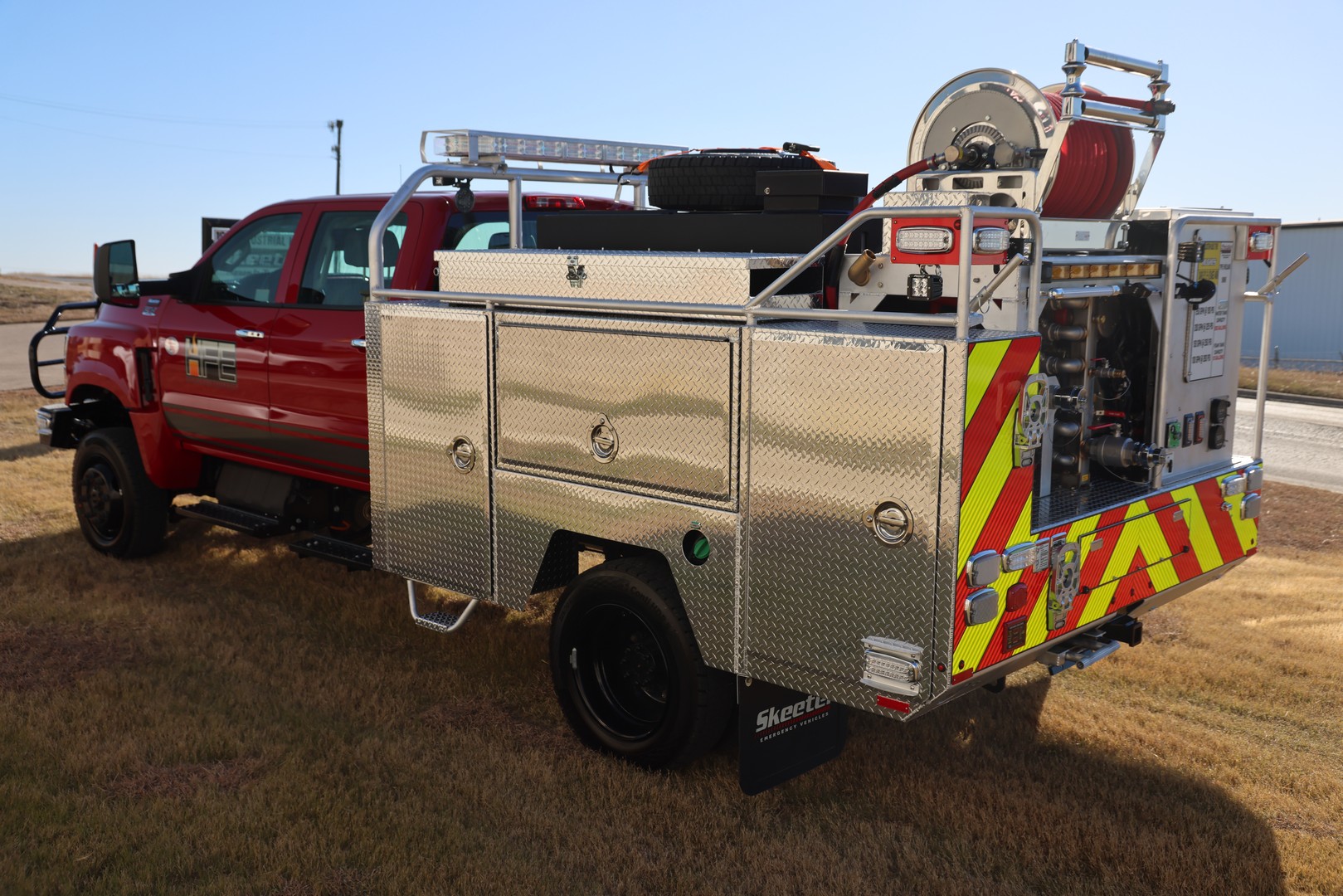

Our team has completed a new type 5 wildland unit for Hughes Fire Equipment in Springfield, OR. It’s a Skeeter Rescue Side, Alum, 114 on a Ford F550 – 4×4 – Diesel – 4 Door chassis with a 400 Gallons, Poly water tank. Check out the complete specs for Job No. 14422 below.
Dealer Information
Jim Renner
541-521-9360
[email protected]
Hughes Fire Equipment Inc.
www.hughesfire.com
More Info
TRUCK DETAILS
| Paint Layout (Single Stock Color) |
| Ford F550 – 4×4 – Diesel – 4 Door, (2019) |
| Chassis 60″ CA |
| Power Package (Electric Windows, Locks, Mirrors) |
| Suspension System, FORD, 4×4, 6″, 4 Link |
| Tires and Wheels, Super Single 335/80 R20 (4) |
| Spare Tire and Wheel, Super Single 335/80 R20 (1) |
| Spare Tire, Top of Tank |
| Skeeter Aluminum Custom Bumper |
| Mud Flaps, Rear Wheels, SBT Logo |
| 1/4″ Skid Protection Panel |
| Transfer Case, Skid Protection Panel |
| Cab Steps, Custom Painted, (4) Door or Extended Cab |

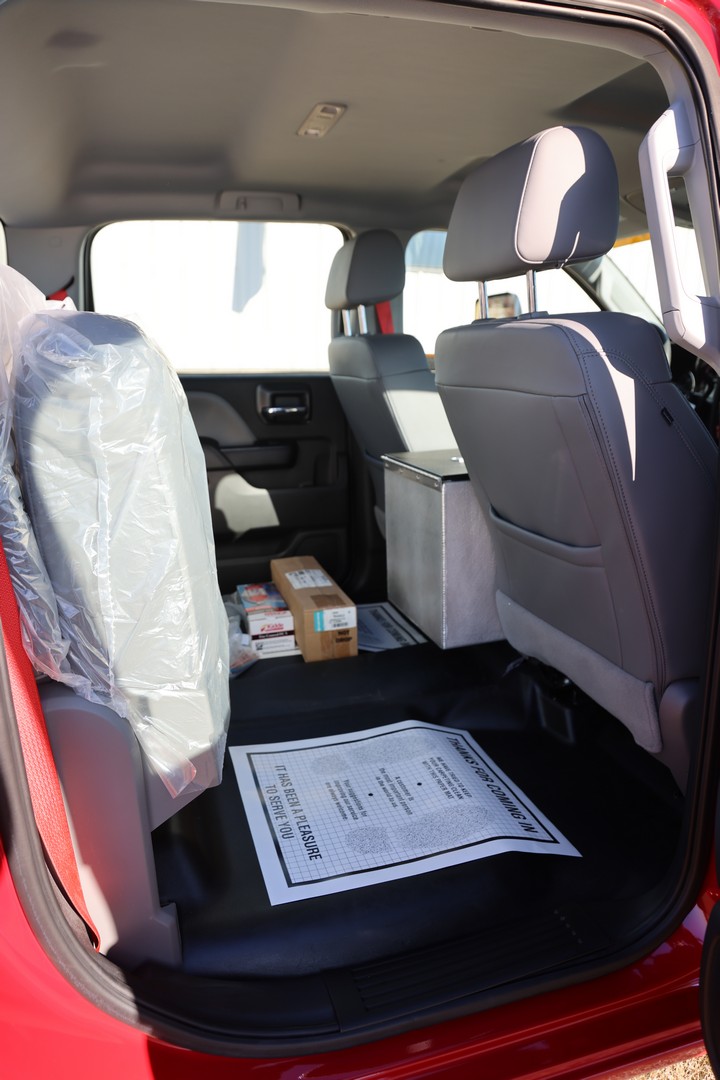

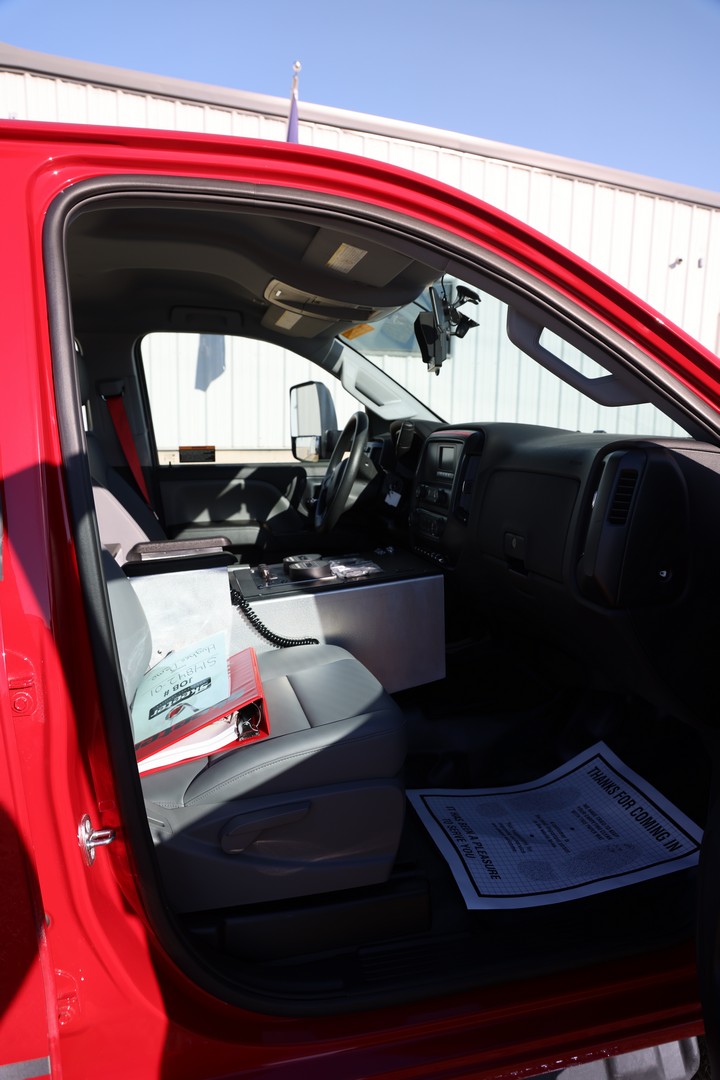

| Cab Console, Poly, Custom |

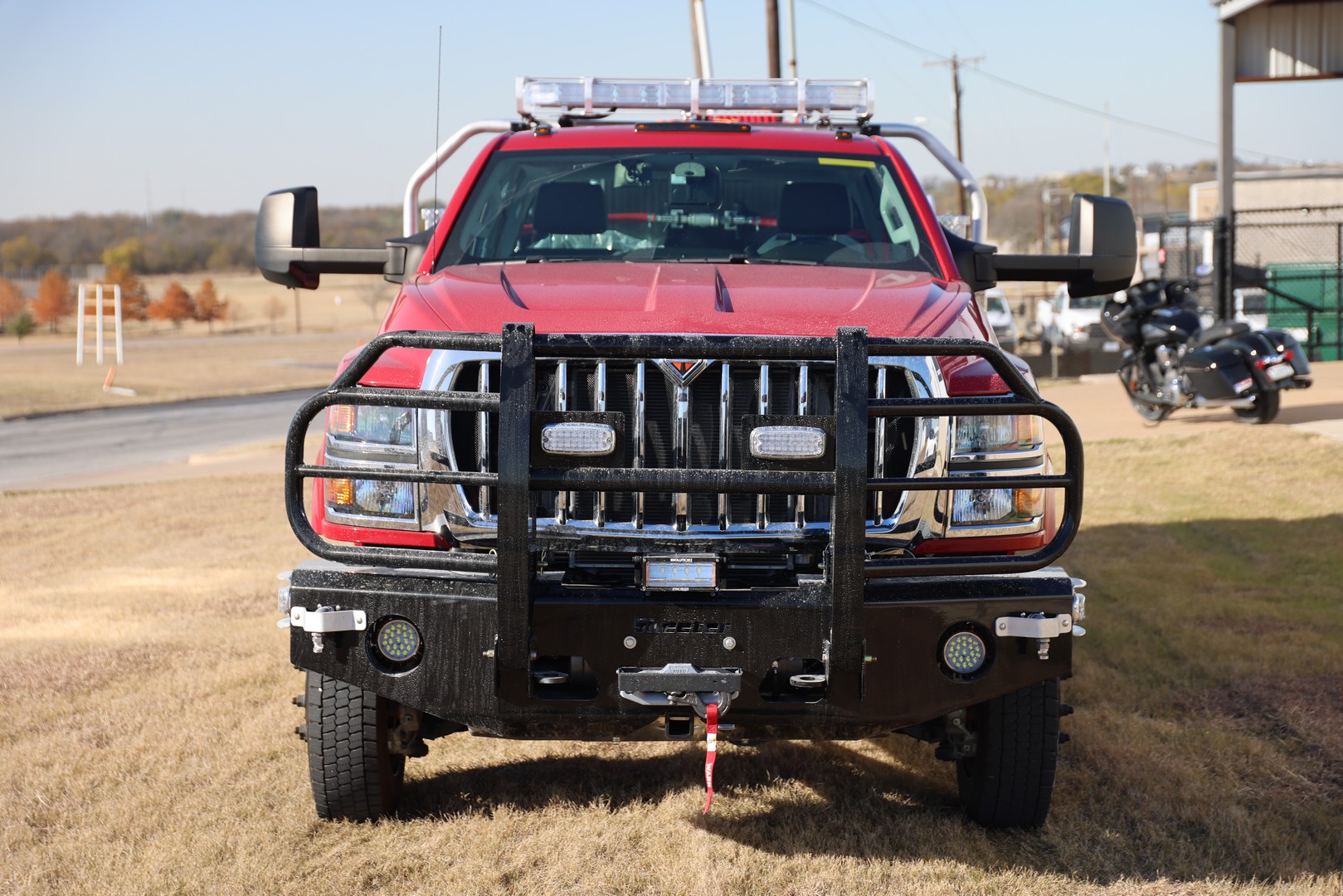

| Winch, Warn, #M15000, Electric, Front Mount, 15,000# |
| Battery Master Disconnect, 12V |
| Ground Lights, Cab, 4 Door, LED (4) Grote #63871 |
| Back-Up Camera, Rear View Safety, (2) cameras |
| Receiver, Rear, Winch/Rope/Trailer, 10,000# |
| Tank Access Ladder, 1″ Aluminum Tubing |

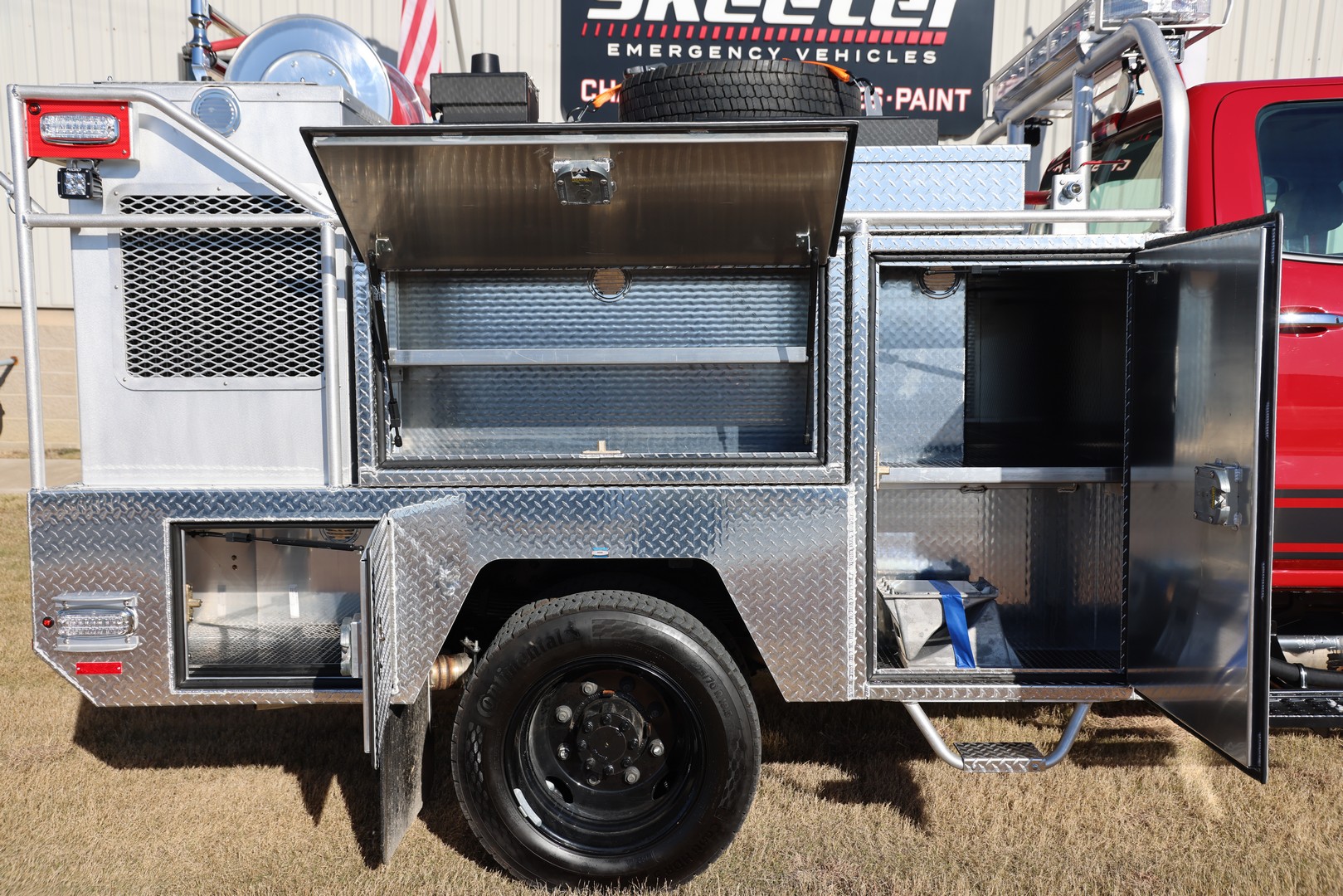

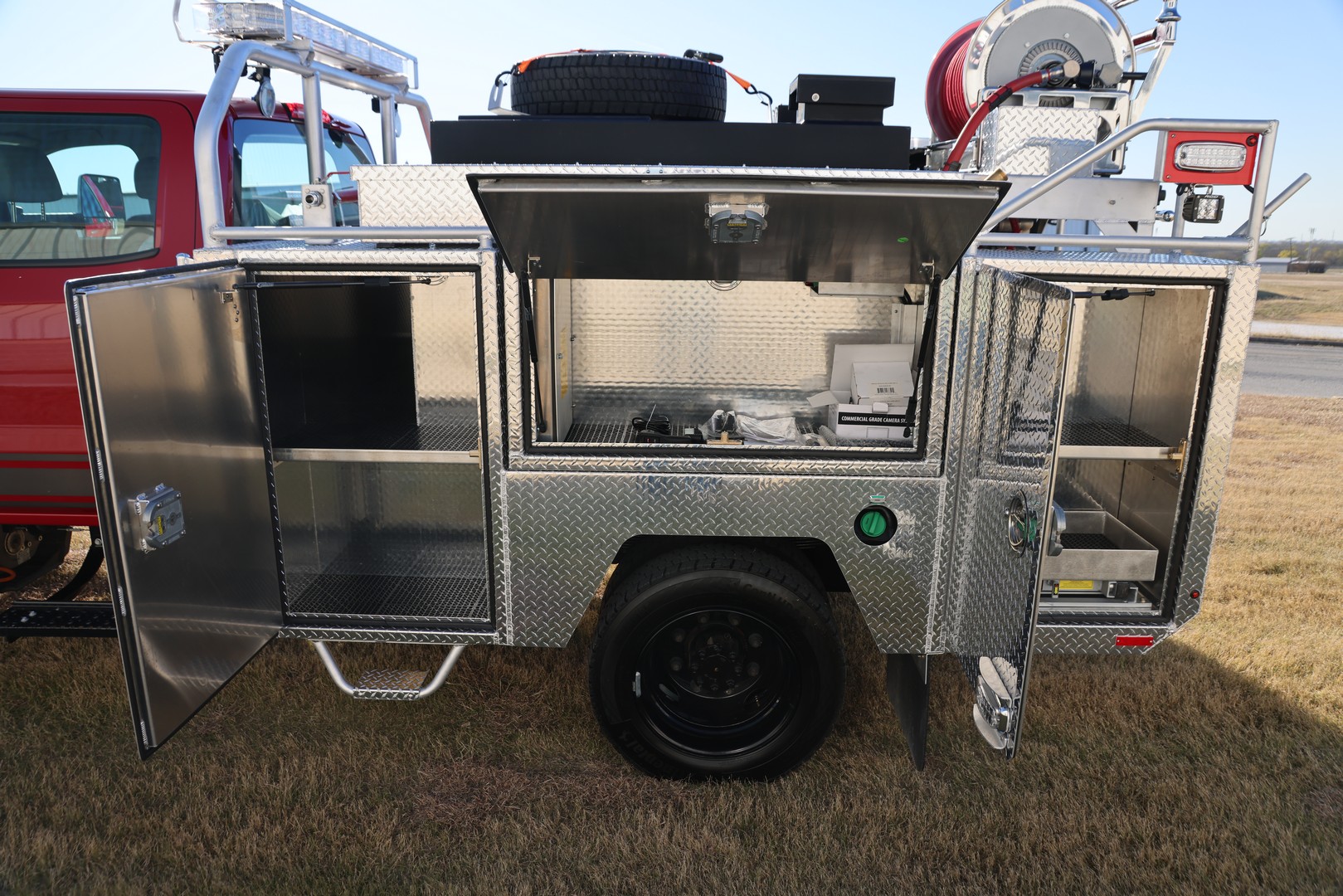

| Rescue Side, Alum, 114″ x 96″, 60CA |
| Diamond Plate Finish Body and Compartments/Trays |
| Front of Body, 22 deg Corners |
| Transverse Compartment (Flat Bed) 18″W |
| Transverse Equipment Storage, Expanded Aluminum, Top of Transverse |
| Compartment, Drivers Side, Lift-Up Door |
| Compartment, Passengers Side, Lift-Up Door |
| Cmpt Under Rear Bdy, D/S & P/S, Alum T/P, 20″ W x 15″H x 23″D, Vert Hingd Dr |
| Rear Center Under Body Compt, Drop Down Door |
| Equipment Tray, Alum, UHMW slide |
| Compartment Ventilation |
| Key Locks, Compartments, Hinged Doors |
| Compartment Lights, LED Strip Light |
| Compartment Light Door Switches, Automatic |
| Door Ajar Light, Flashing LED, Clear Lens |
| Hose Tray, Driver’s Side, 72 in. long |
| Tool Tray, Passenger Side, 72 in. long. |

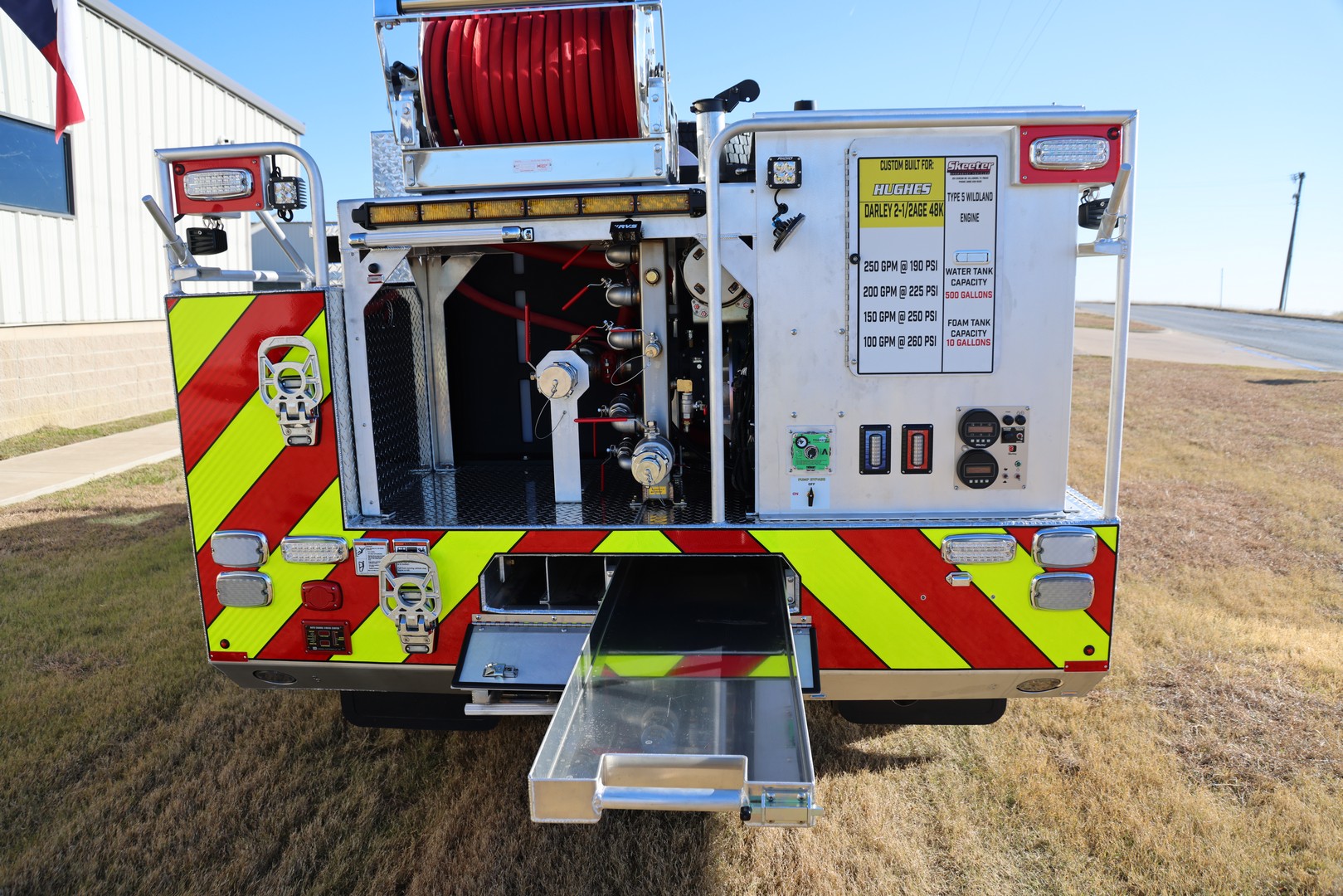

| Rear Step, Pull out and drop down |
| Step, Sig-4, Folding, Lighted, DS REAR(1) |
| Recessed/Pocket Step Front Body |
| Side Body Access Steps, Stirrup (2) |
| Ground Lights, Under Rear Step, LED (2), Grote #63871 |
| Body Work Lights, LED, (4), Grote #63871 |
| Power Outlets 12V, Cigarette Lighter Type, Cab (3) |
| Fuse Box |
| Chassis Harness |
| Wiring Harness, Body Electrical |
| Clearance Lights, LED, DOT |
| License Plate, Mount, Lighting |
| Stop/Tail/Turn Lights, Whelen M6BTT/M6FC |
| Back up Lights, Whelen M6 Series, LED, |
| Scene Light, Combo, Rigid 20″ |
| Scene Light, (6) Rigid Dually |
| Scene Light, Rigid Dually, Spot, Monitor |
| Back Up Alarm, Buyers, #BA107 |
| Siren, Electronic, Whelen, CCSRN3. CEN COM |
| Speaker, Whelen, #SA315P, 100 Watt |
| Lightbar Mounting, Headache Rack, Alum, Enclosure Protection |
| Lightbar, Whelen,Legacy, 54″ |
| Warning Lights, Whelen, M-7 Series (12) Lights |

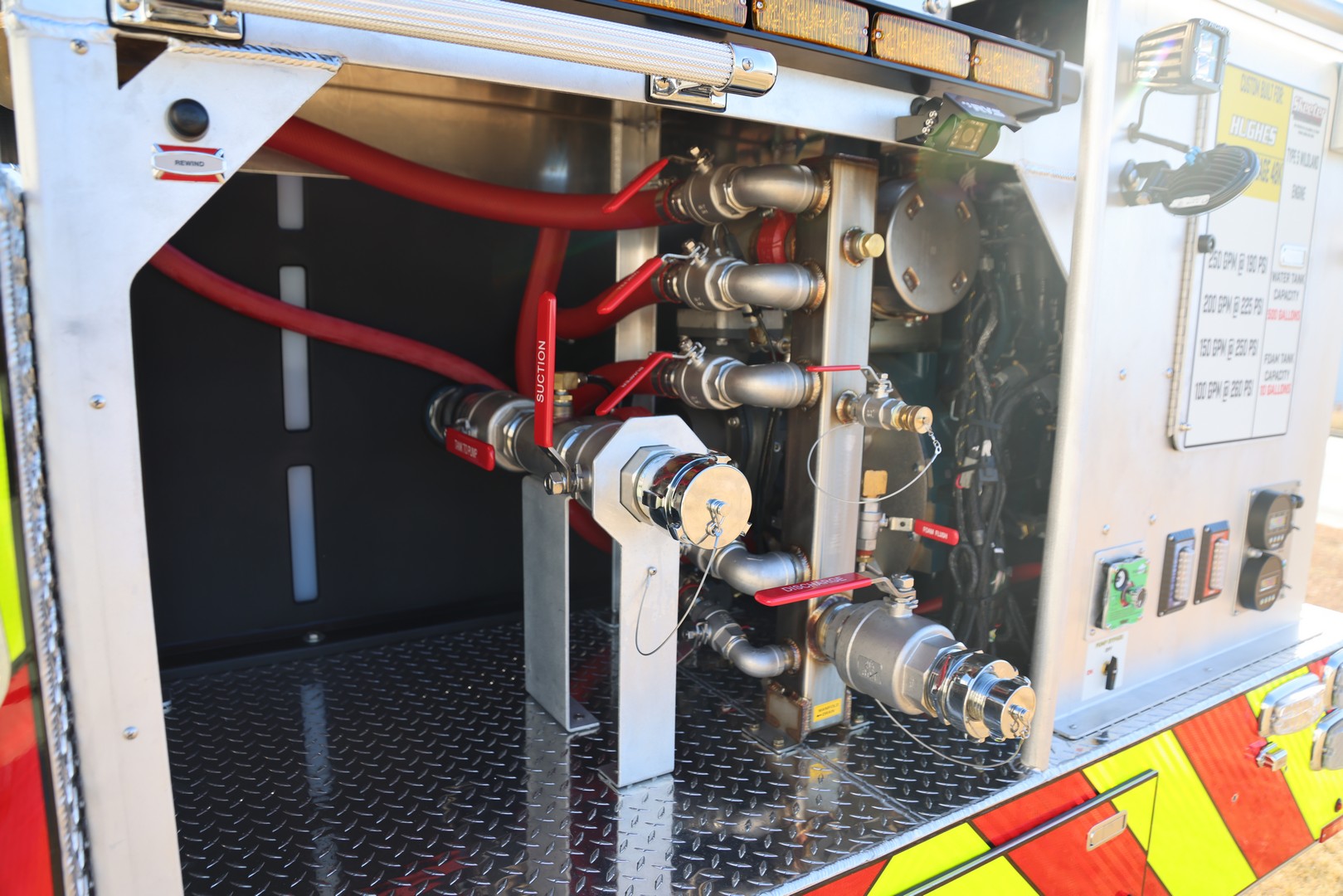

| Pump, Darley 2 BE 18V |
| Standard Stainless Steel Manifold |
| Valves, S/S, Quarter Turn |
| Hose Threads |
| Exhaust System, Vertical, Rain Cap, Aux Pump |
| Pump Control Panel Enclosure |

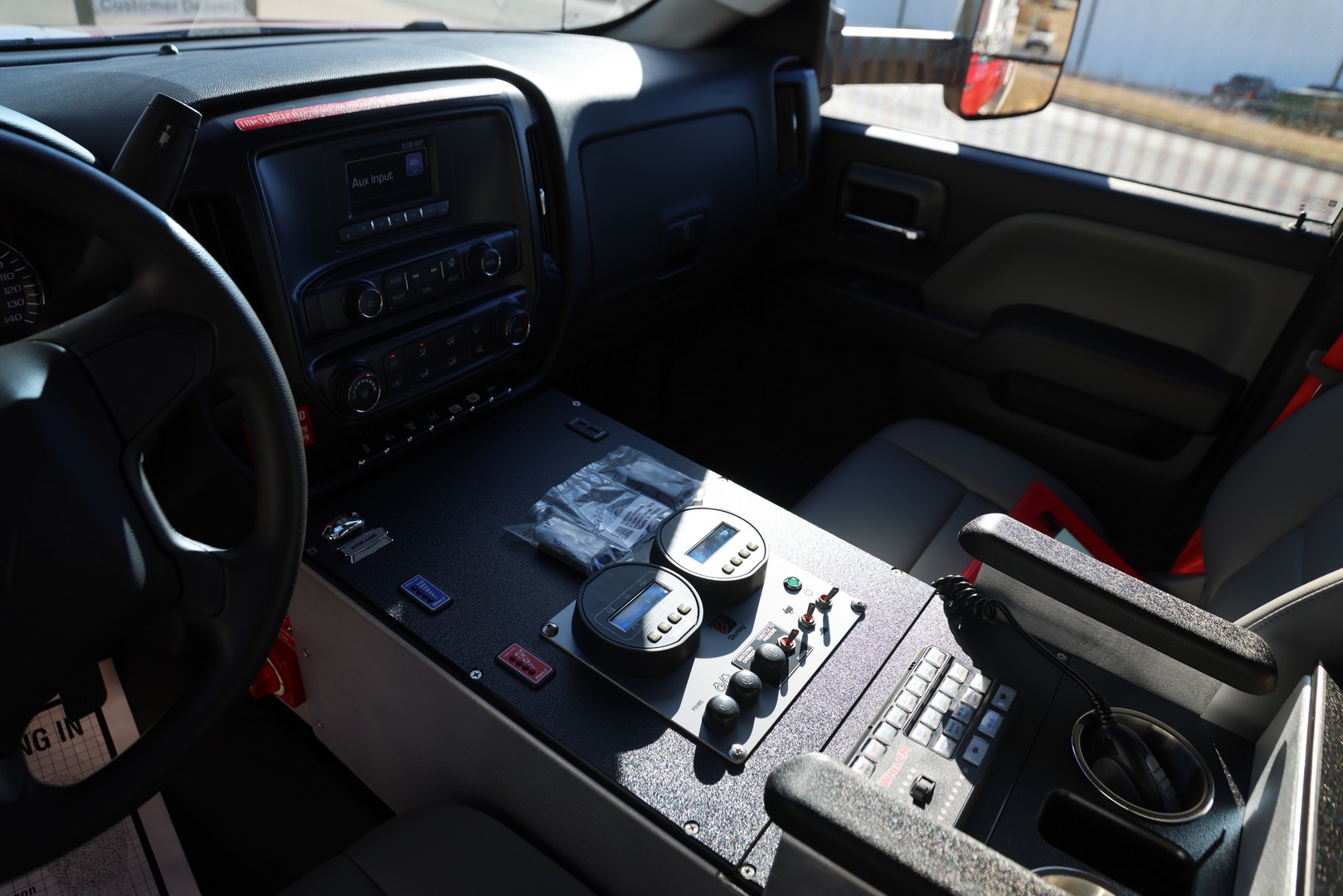

| Remote Pump Control in Cab (Electronic) |
| Pump Fuel from Fuel Can (Plastic 6 gallon) |
| Battery Supply, 12V, Chassis, Master Switch & Solenoid |
| Aux Fire Pump Mntg, P/S Rear, Bolted |
| Pump Engine Oil Drain |
| Pump Drain, Master Drain–Low Point |
| Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl |
| Tank-To-Pump, Water Tank, 2.5″, Install |
| Tank Fill and Cooling Line, Water Tank, 1″, Aux Pump |
| Discharge, .75″GH, Rear, Garden Hose Outlet |
| Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap |
| Discharge, 1.5″, Rear, Pre-connect |
| Hose Reel, Hannay, D/S Mount, Elec Rewind, Alum |
| 200 Foot Reel Capacity |
| Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl |
| Nozzle Mounting |
| Hose, Water, 300#, 1″ x 150′ |
| Roller, Hose Reel, Center |
| Ground Sweep Discharges, Front Bumper |
| Bmpr Monitor, Akron, Forestry, Elec |
| Foam system, Scotty #4171, Through-the-pump, Built-in, Aux Pump |
| Water Tank Gauge, Class 1, Rear & Cab |
| Water Tank Capacity, 400 Gallons, Poly |
| Water Tank, Specs |
| Water Tank Shape, Rectangular |
| Water Tank, NFPA Compliance |
| Tank Gauge, Translucent Tank Sight Level |
| Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner |
| Overflow, Water Tank, 3″ PVC Pipe, <500G |
| Pump to Tank, Fill Connection, 1.5″, 300 GPM Flow |
| Water Tank Drain Plug, 1.5″ |
| Foam Tank Capacity, 10 Gallons, Class A, Poly |
| Foam Tank, Fill and Vent, Class A |
| Foam Tank to Foam System, 3/4″ |
| Foam Tank Drain and Valve, 3/4″ |
| Foam Tank Gauge, Class 1, Class A, Rear & Cab |
| Reflective Lettering, Purchaser Installed |
| Door Graphic Emblems, (2) Custom |
| Stripe, Cab/Body, Single Reflective, 4″ |
| Stripe, Reflective, SCOTCHLITE, Chevron, Front Bumper, Alum Bumper |

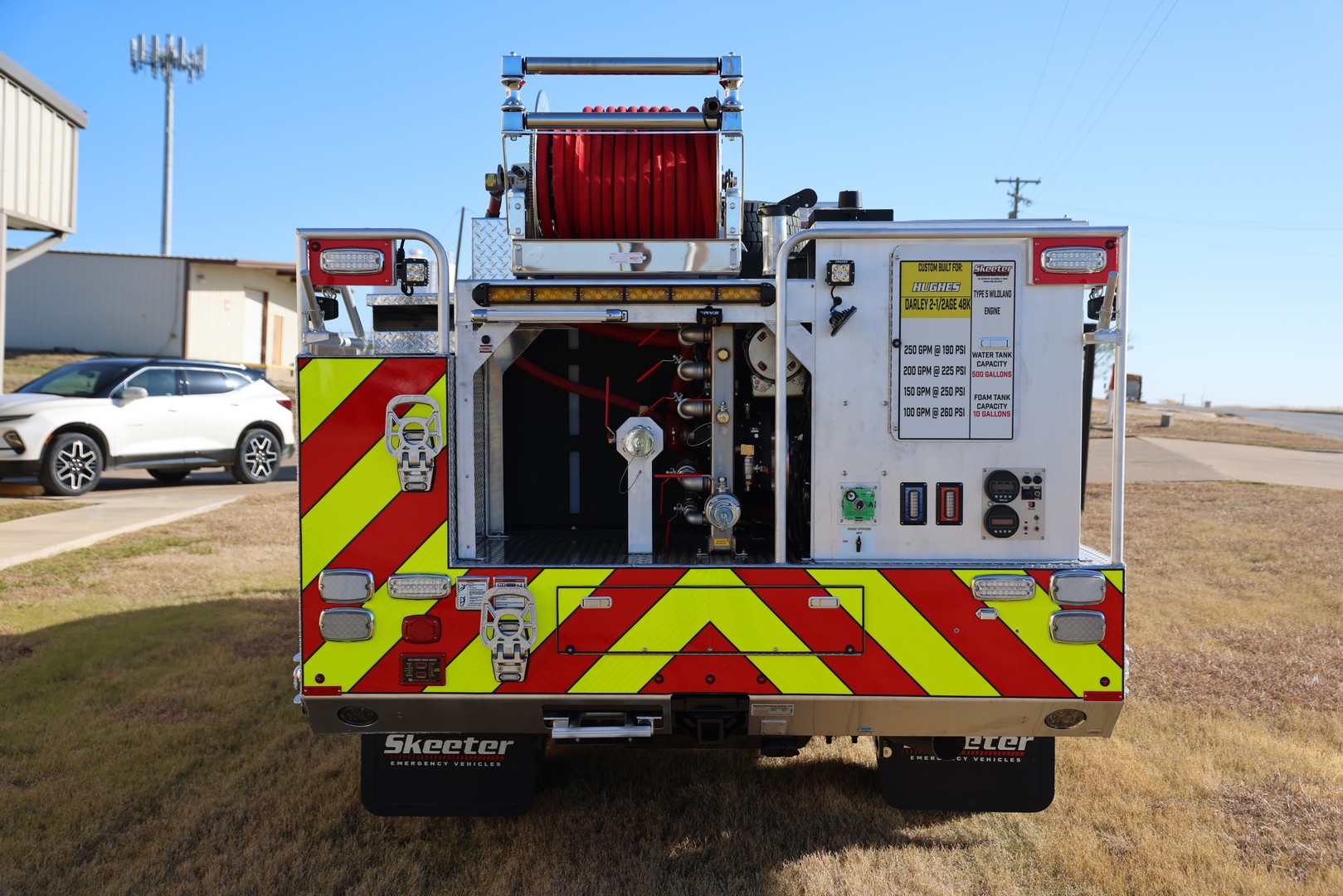

| Stripe, Reflective, SCOTCHLITE, Chevron, Rear |

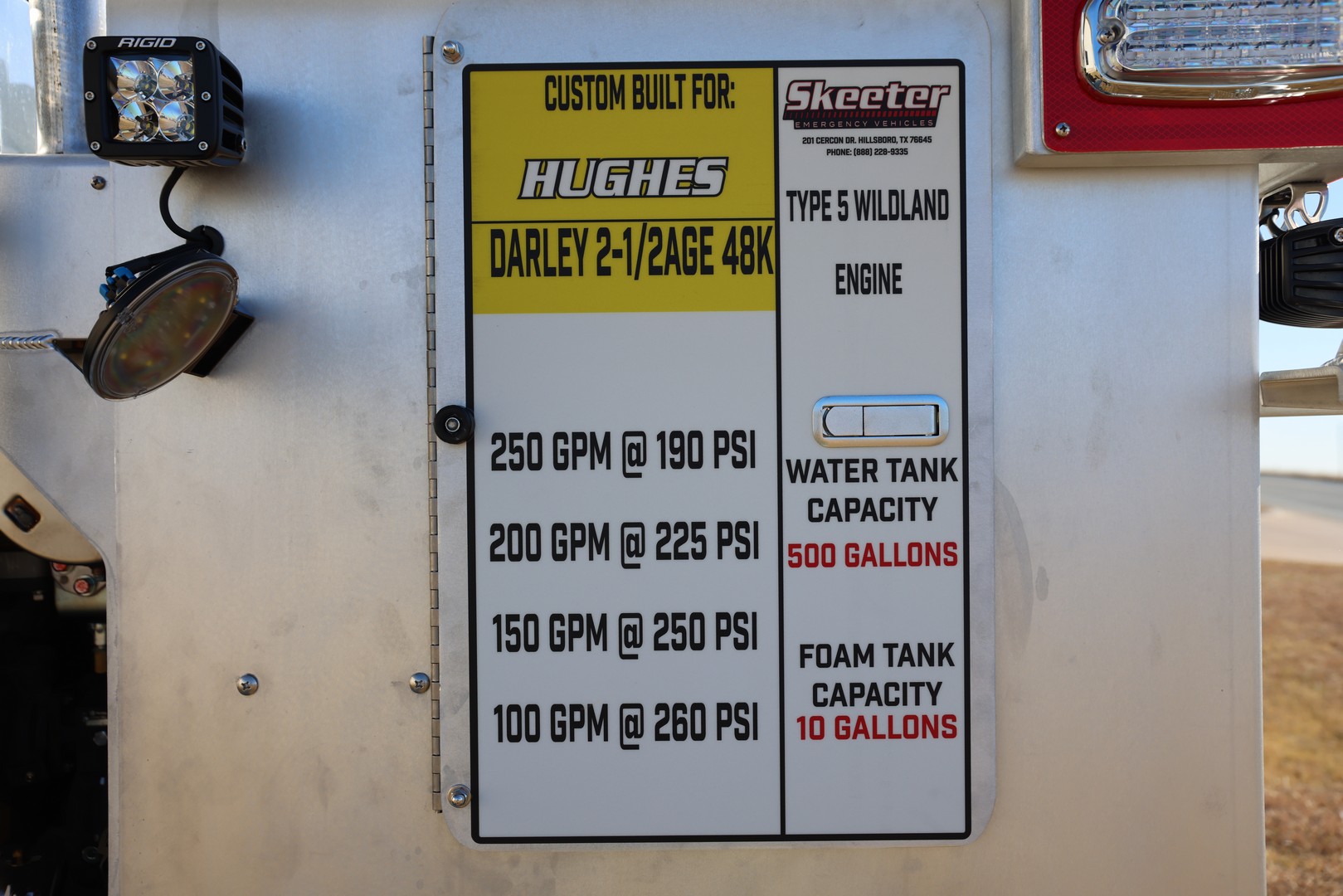

| Capacities Placard, Reflective |
