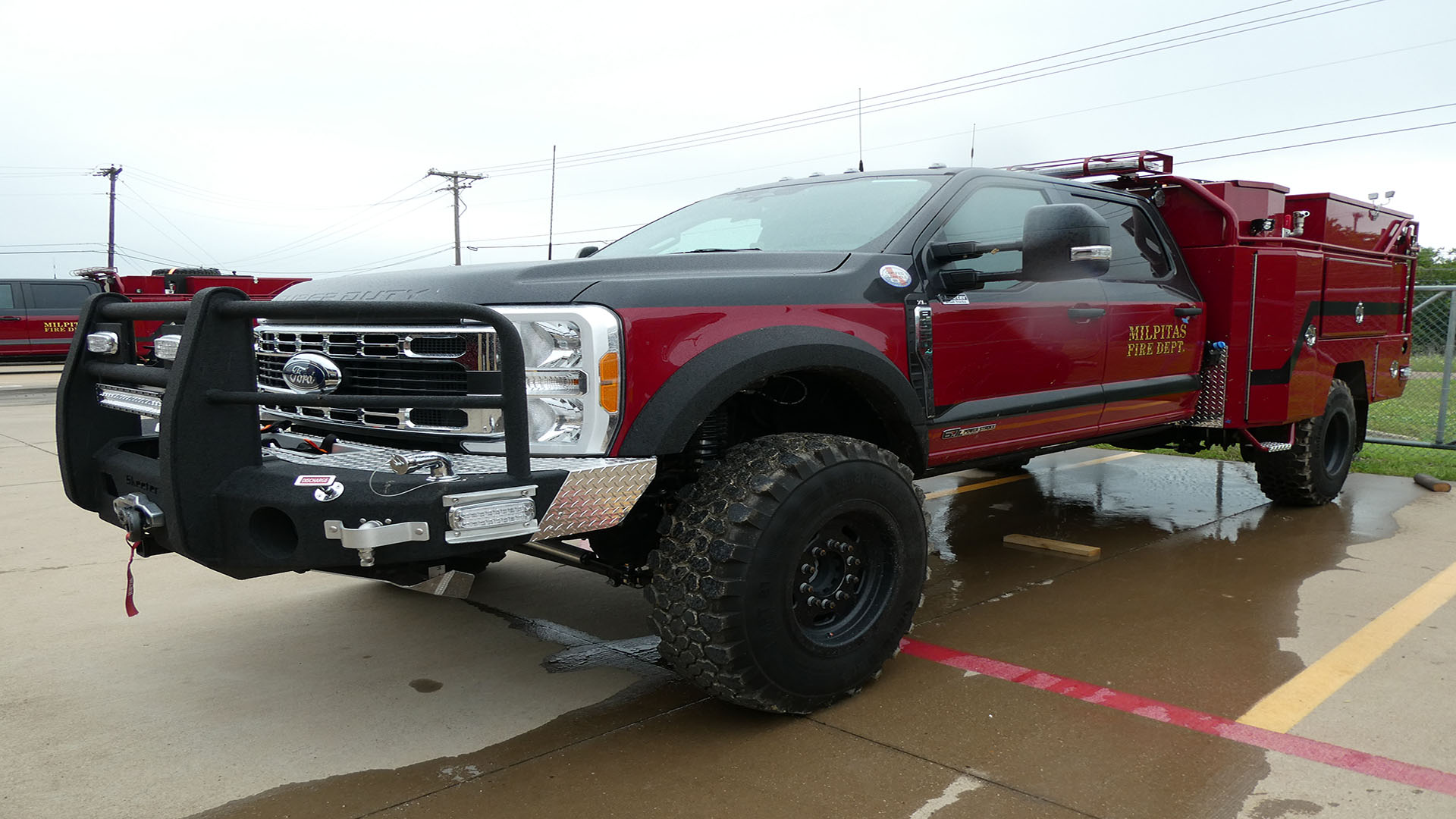

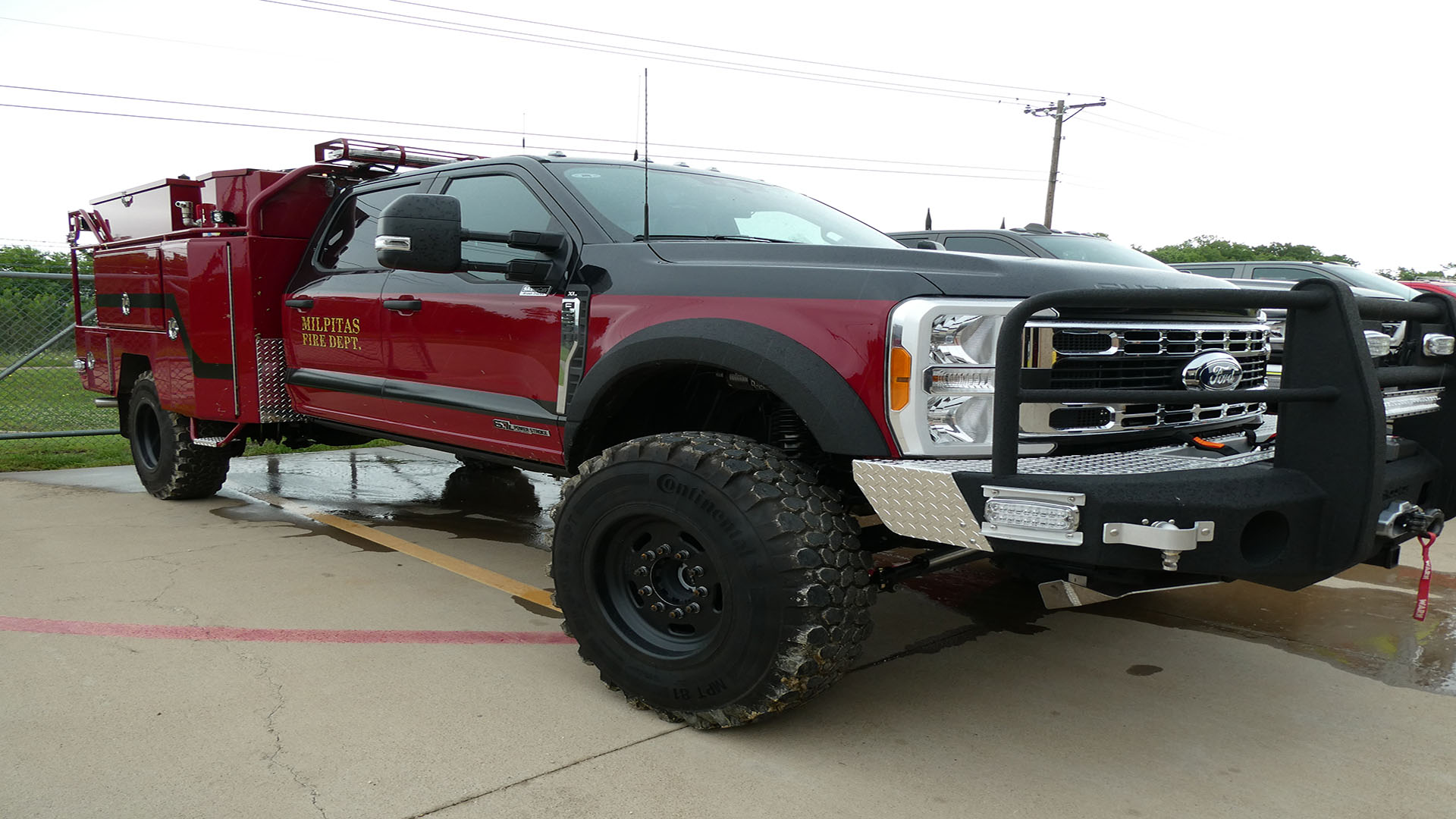

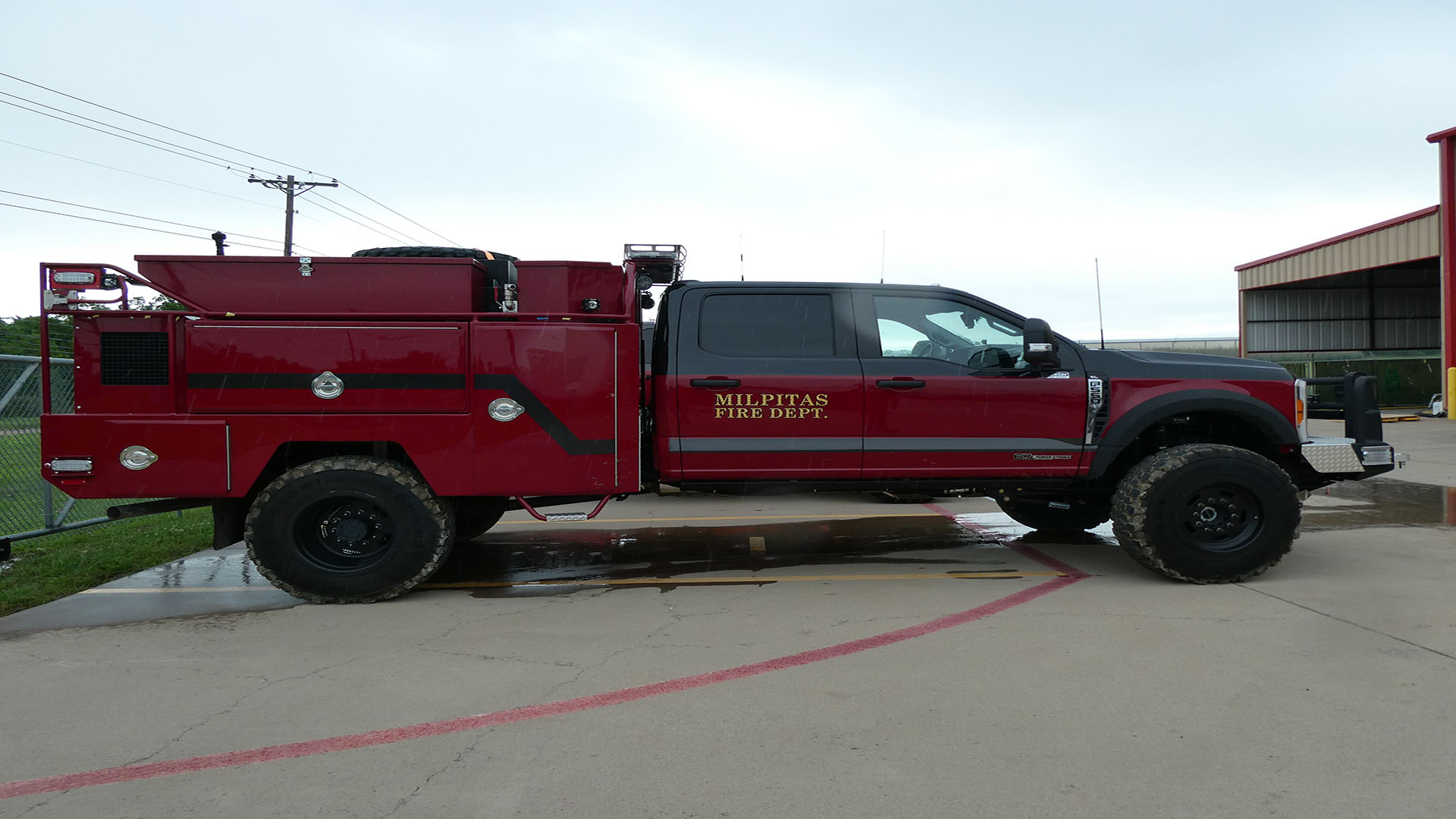

Our team has completed a new type 5 wildland unit for Milpitas Fire Department in Milpitas, CA. It’s a Skeeter Rescue Side, Alum, 114 on a Ford F550 – 4×4 – Diesel – 4 Door chassis with a 400 Gallon, Poly water tank. Check out the complete specs for Job No. S14662 below.
Dealer Information
More Info
TRUCK DETAILS
| Paint Layout (Cab Repaint) Industrial Quality |
| Window Tint (SPECIFY) |

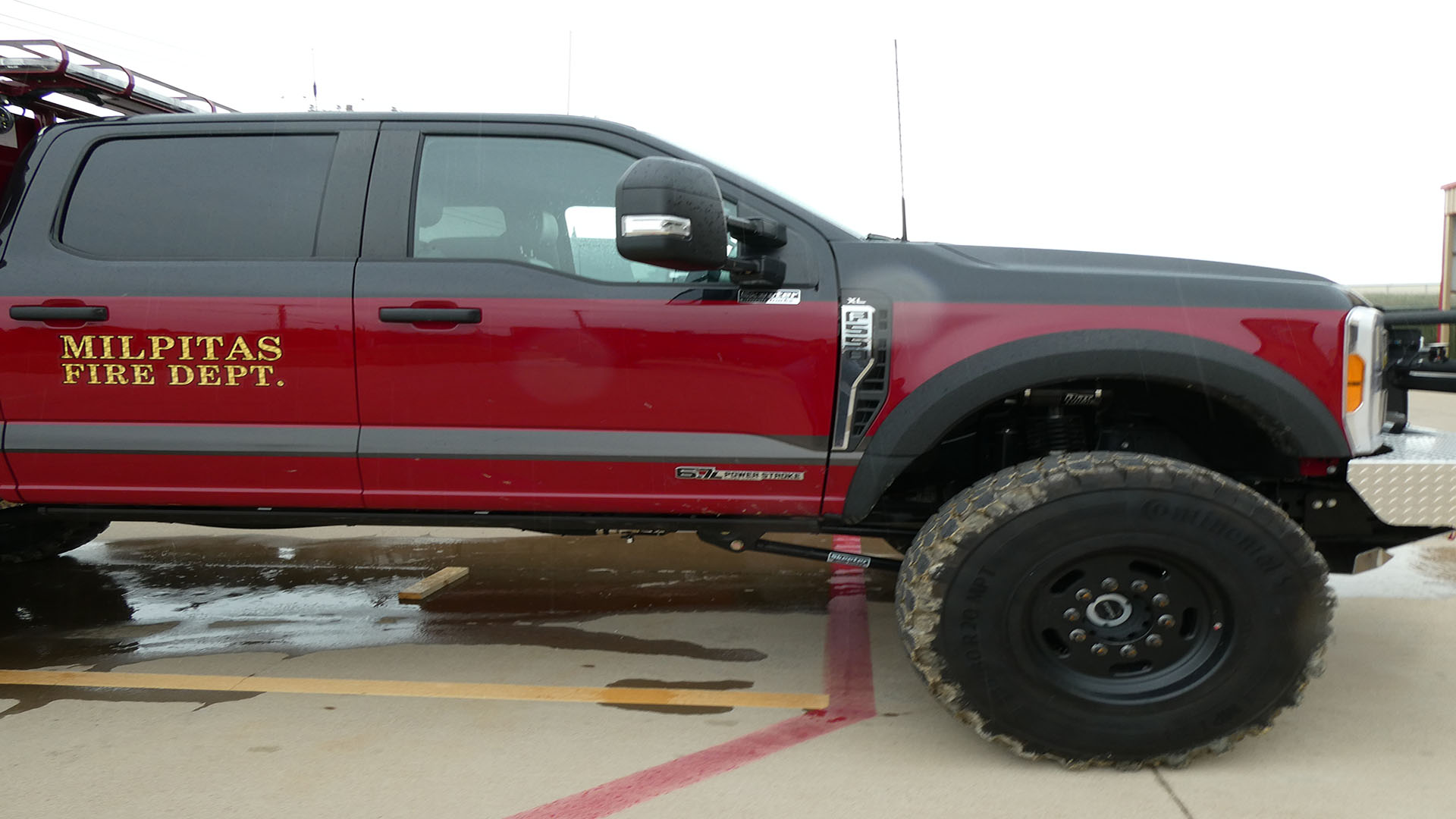

| Ford F550 – 4×4 – Diesel – 4 Door (2022.3) |
| Chassis 60″ CA |
| Power Package (Electric Windows, Locks, Mirrors) |
| Bumper Platform,, Small Truck |
| Bumper Hose Compartment – Center (Without Lid) |
| Suspension System, FORD, 4×4, 6″, 4 Link |
| Vehicle Dynamics Correction Kit, Ford F-450/550, Lifted |
| Tires and Wheels, Super Single 335/80 R20 (4) |
| Spare Tire and Wheel, Super Single 335/80 R20 (1) |
| Spare Tire, Top of Tank |

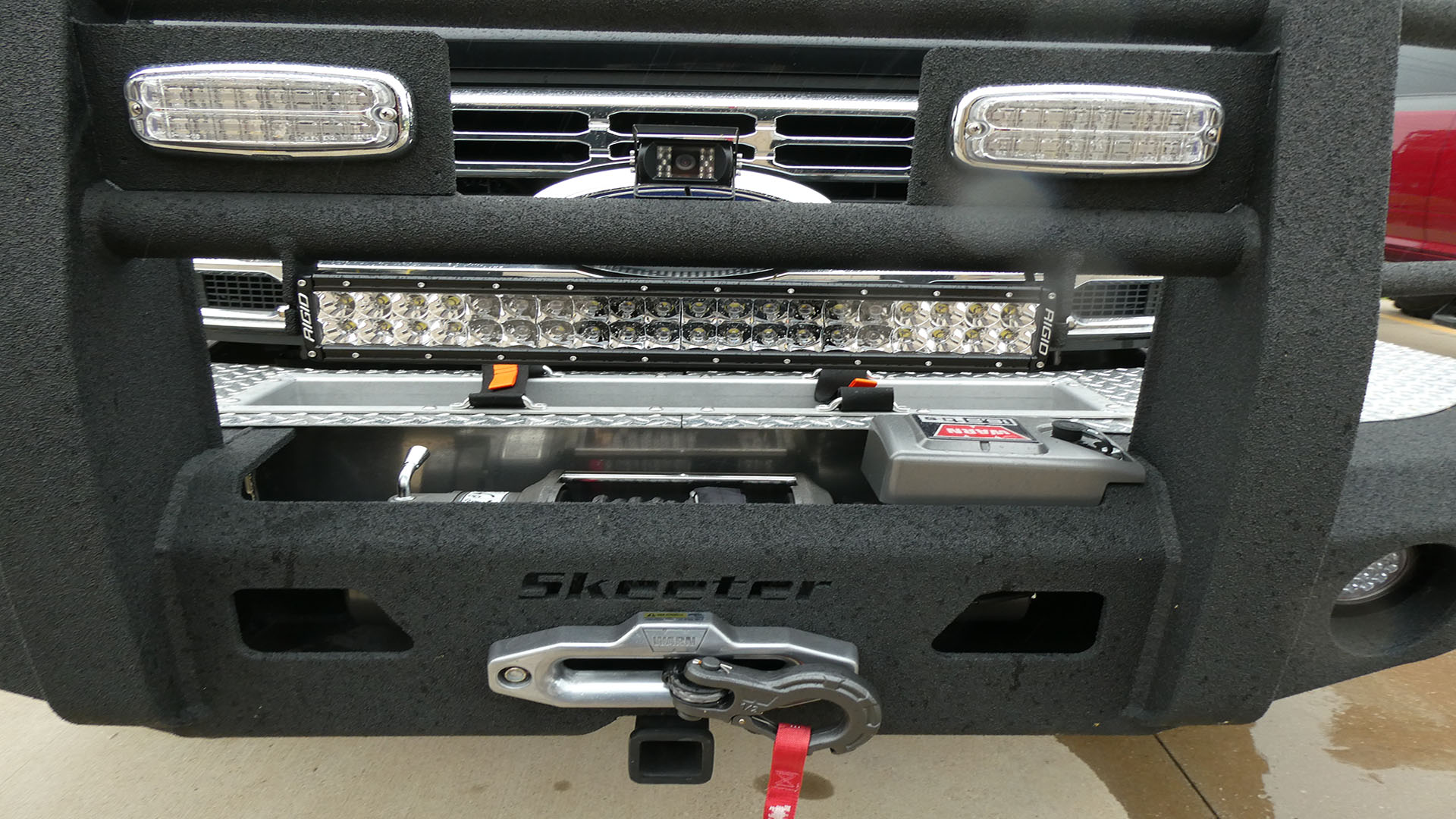

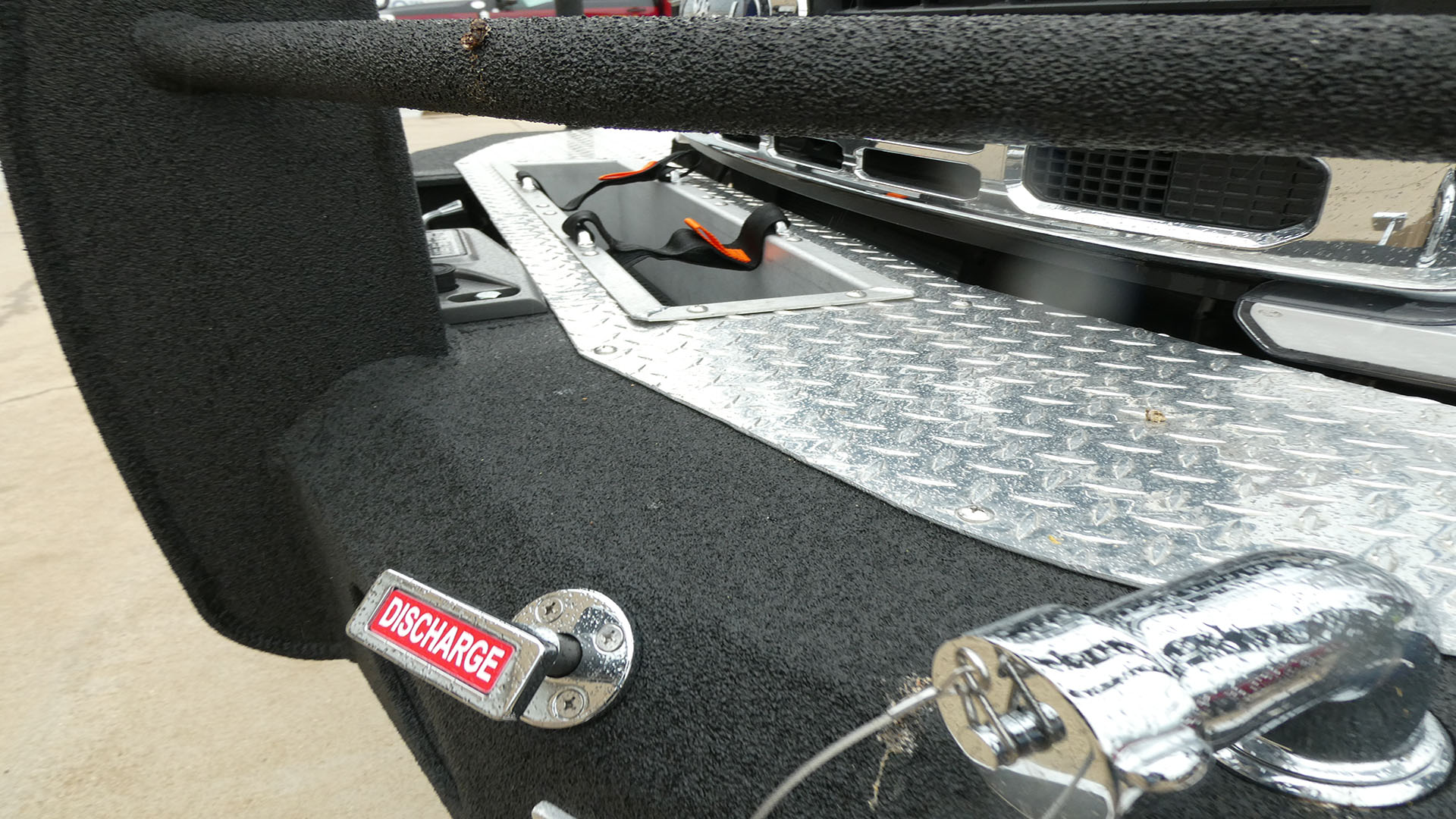

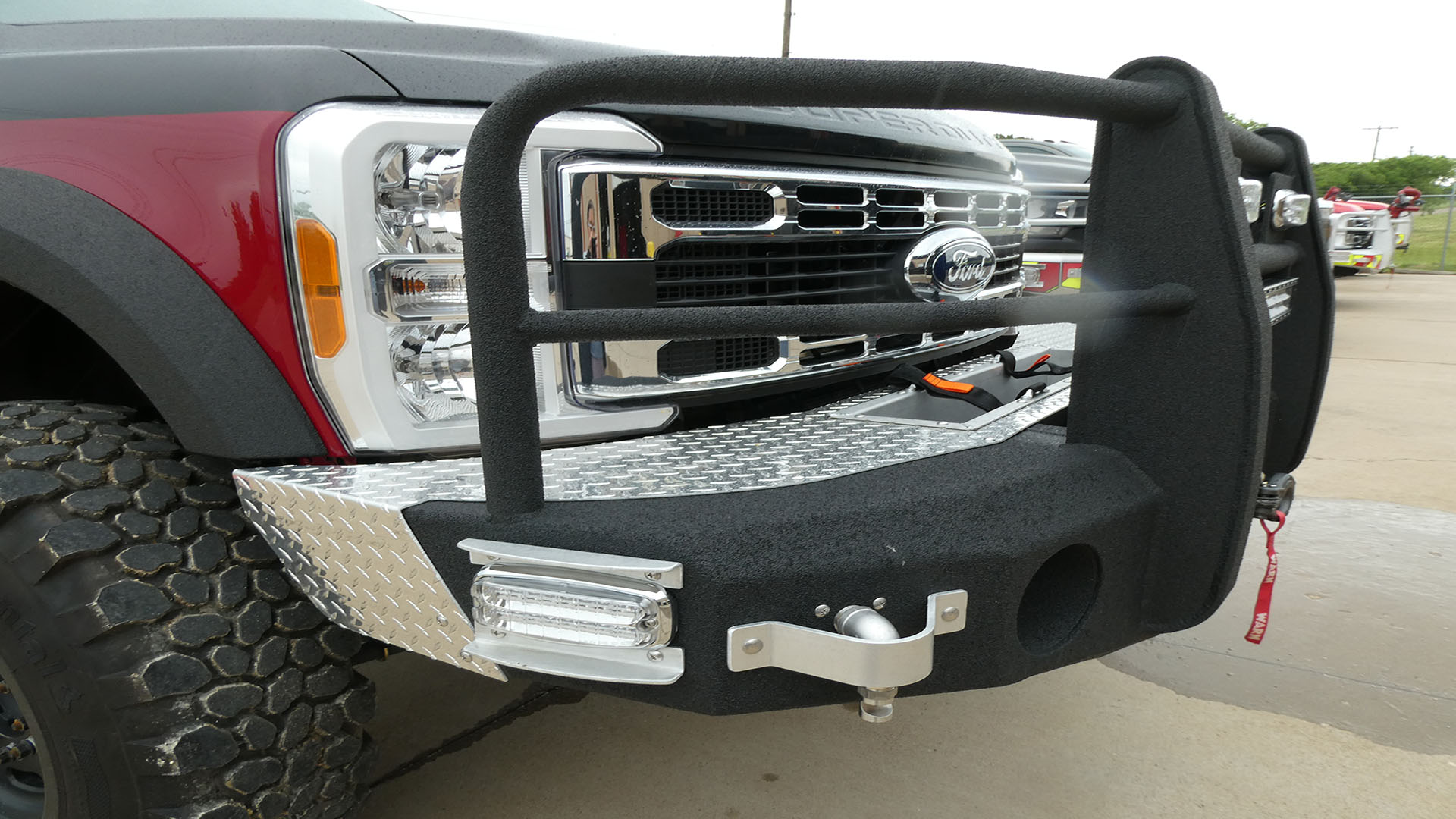

| Skeeter Aluminum Custom Bumper, Bed Lined BLACK |
| Mud Flaps, Rear Wheels, SBT Logo |
| 1/4″ Skid Protection Panel |
| Transfer Case, Skid Protection Panel |
| Electric Fold Down Steps, Amp Research |

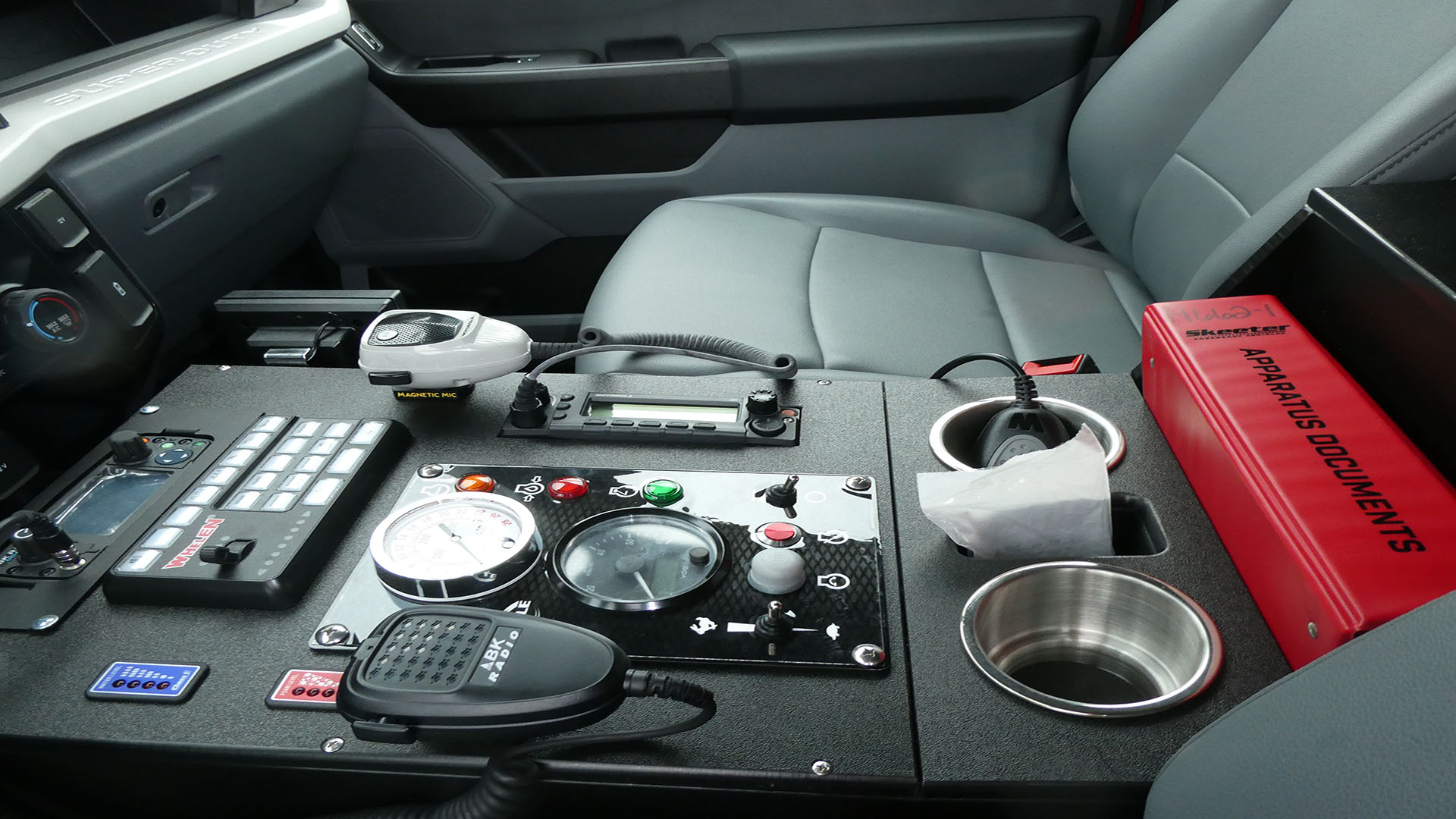

| Cab Console, Poly, Custom |
| Warn Synthetic Winch Rope, 100′ x 3/8″, 16,500 lbs. |
| Winch, Warn, #M16ti, Electric, Front Mount, 16,500# |
| Battery Master Disconnect, 12V |
| FRC SoBrite LED Off-Road Lights, 6′ (2) |
| Ground Lights, Cab, 4 Door, LED STRIPS |
| GPS Unit |
| Tilt Meter |
| Back-Up Camera, Rear View Safety, (2) cameras |
| Radio, Fire, Installation, Purchaser Supplied |
| Radio, Fire, Installation, Purchaser Supplied – Antenna Only |
| Receiver, Rear, Winch/Rope/Trailer, 10,000# |
| Tank Access Ladder, 1″ Aluminum Tubing |

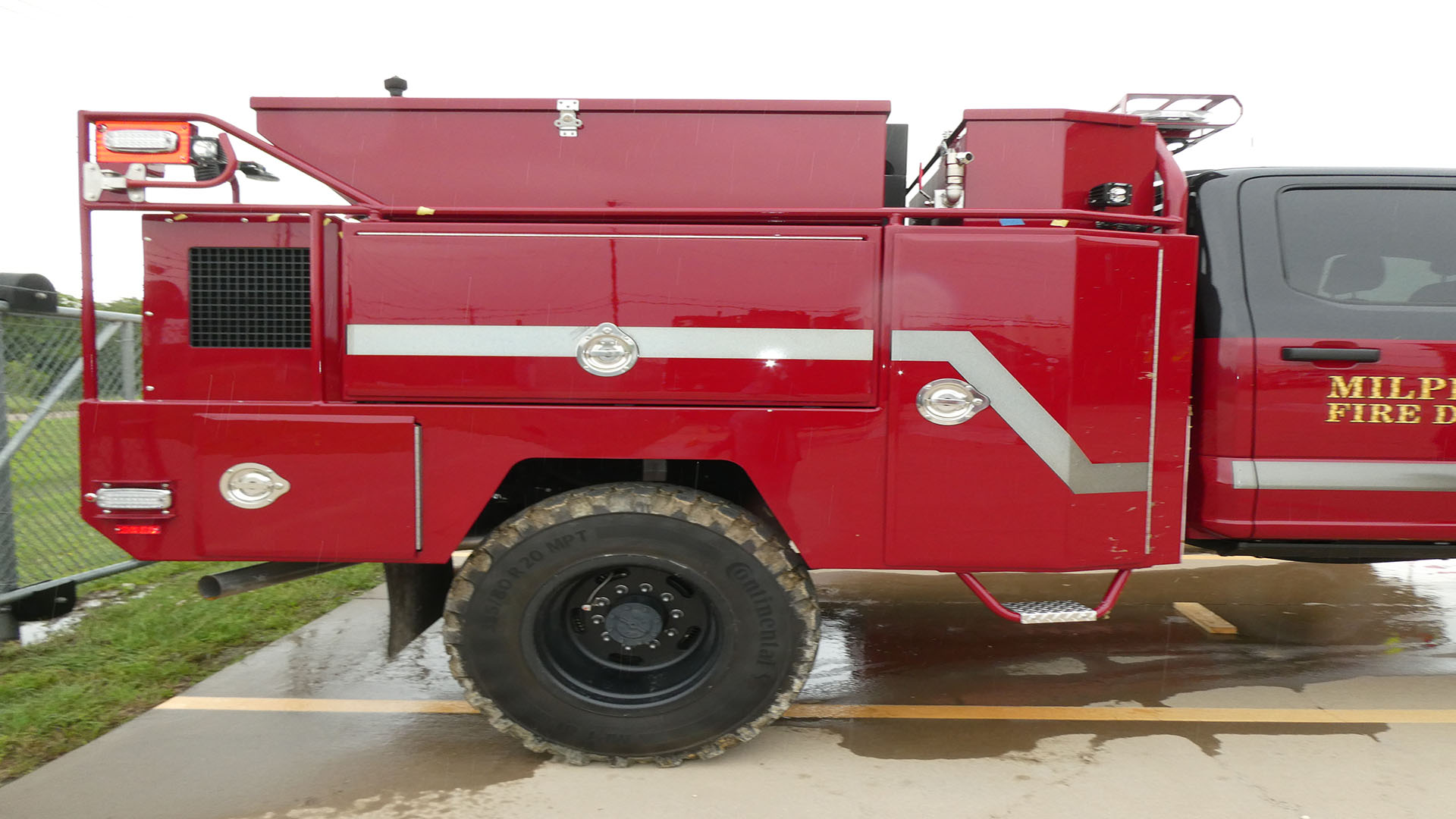

| Rescue Side, Alum, 114″ x 96″, 60CA |
| Painted Finish Body and Compartments/Trays |
| Front of Body, 22 deg Corners |
| Transverse Compartment (Rescue-Side) 18″W |
| Transverse Tray |

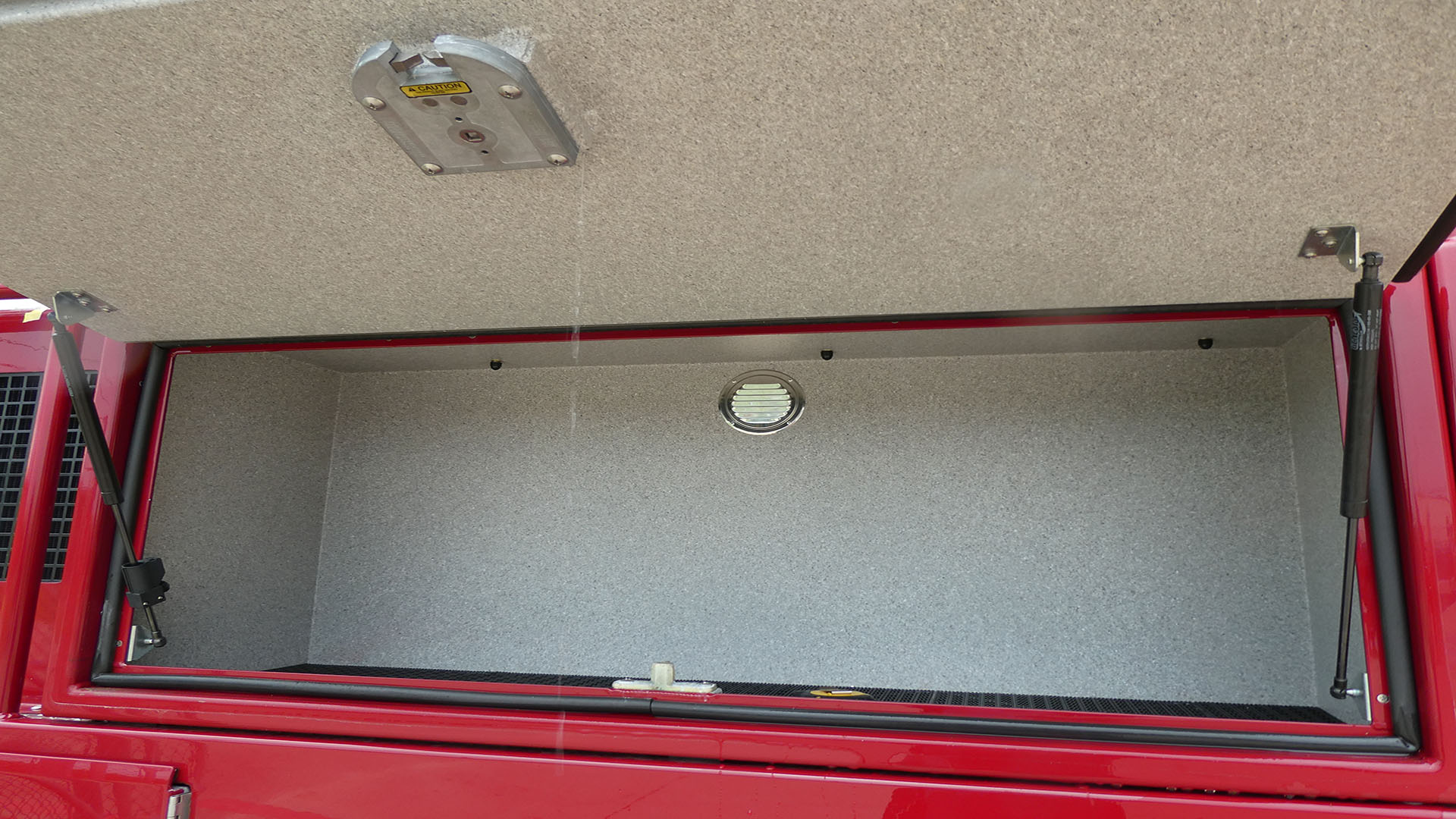

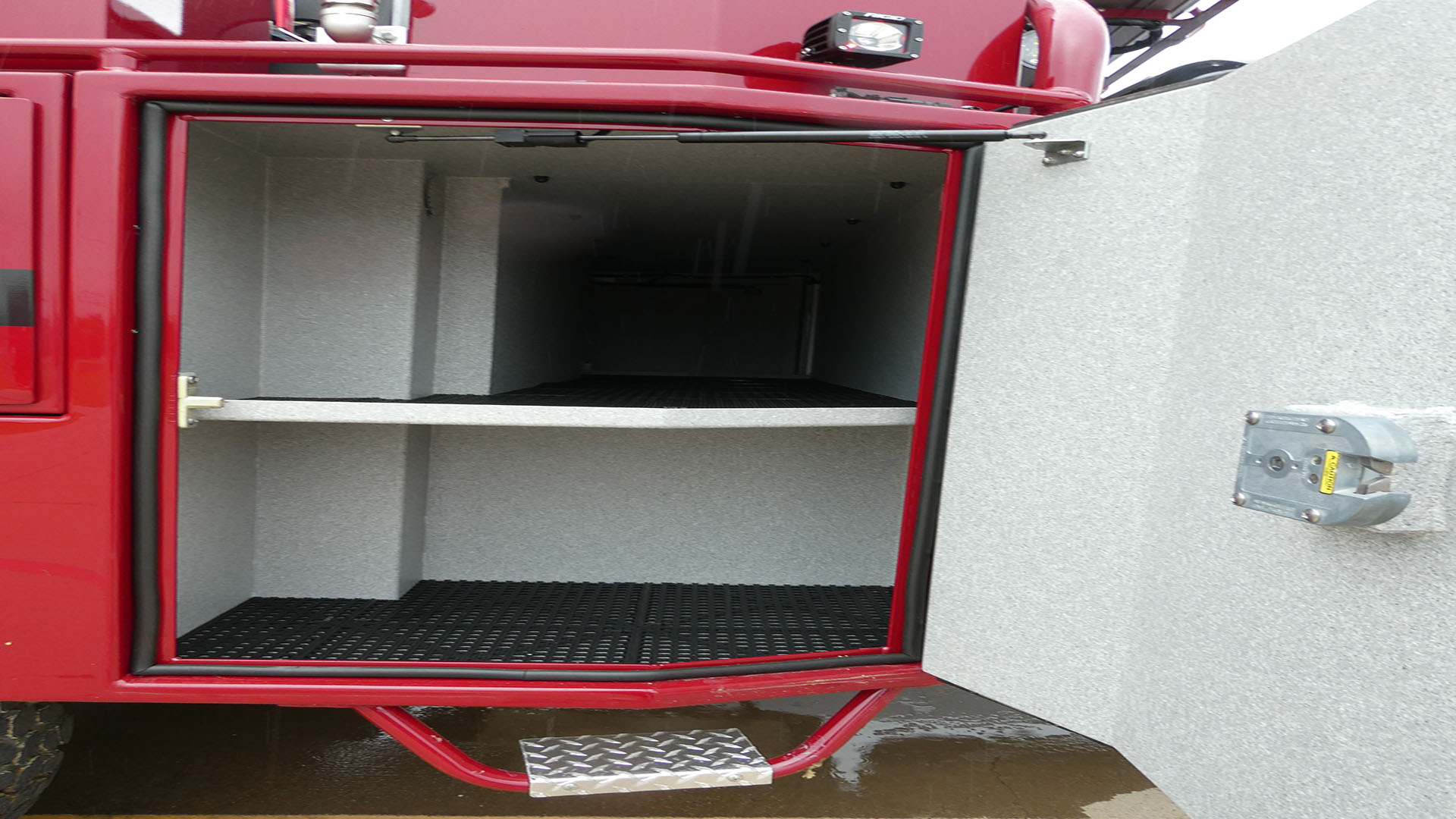

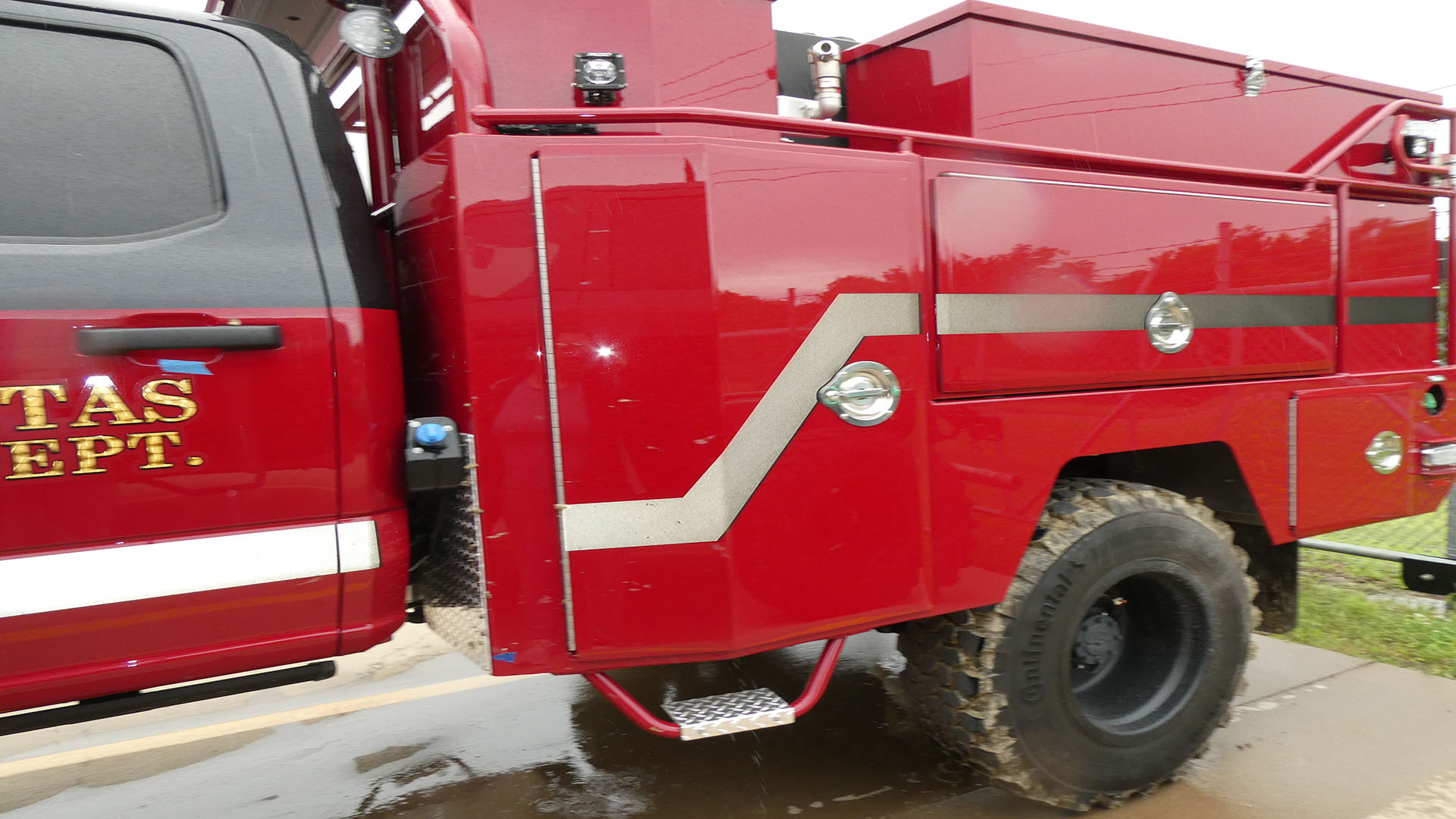

| Compartment, Drivers Side, Lift-Up Door |
| Compartment, Passengers Side, Lift-Up Door |

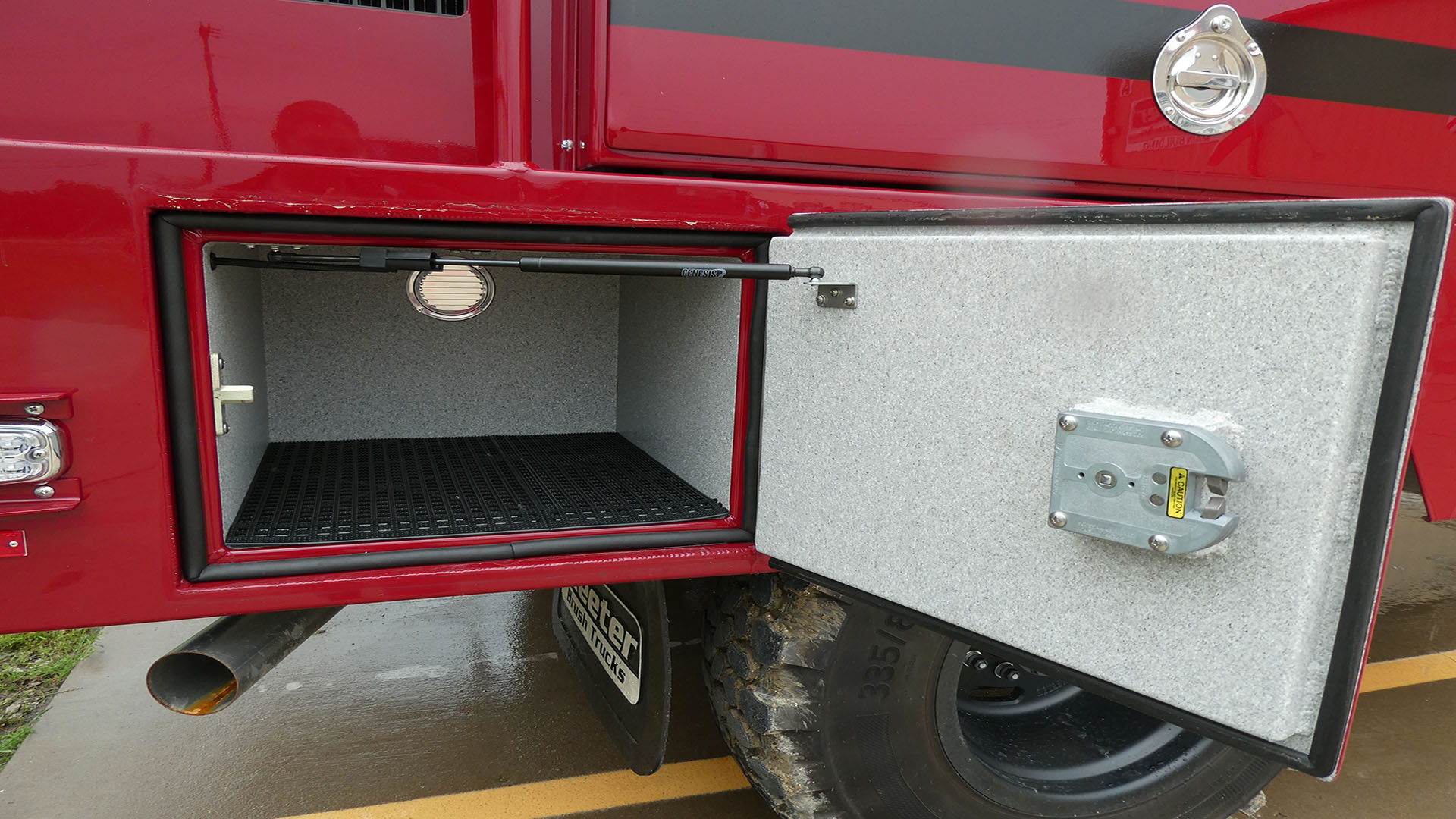

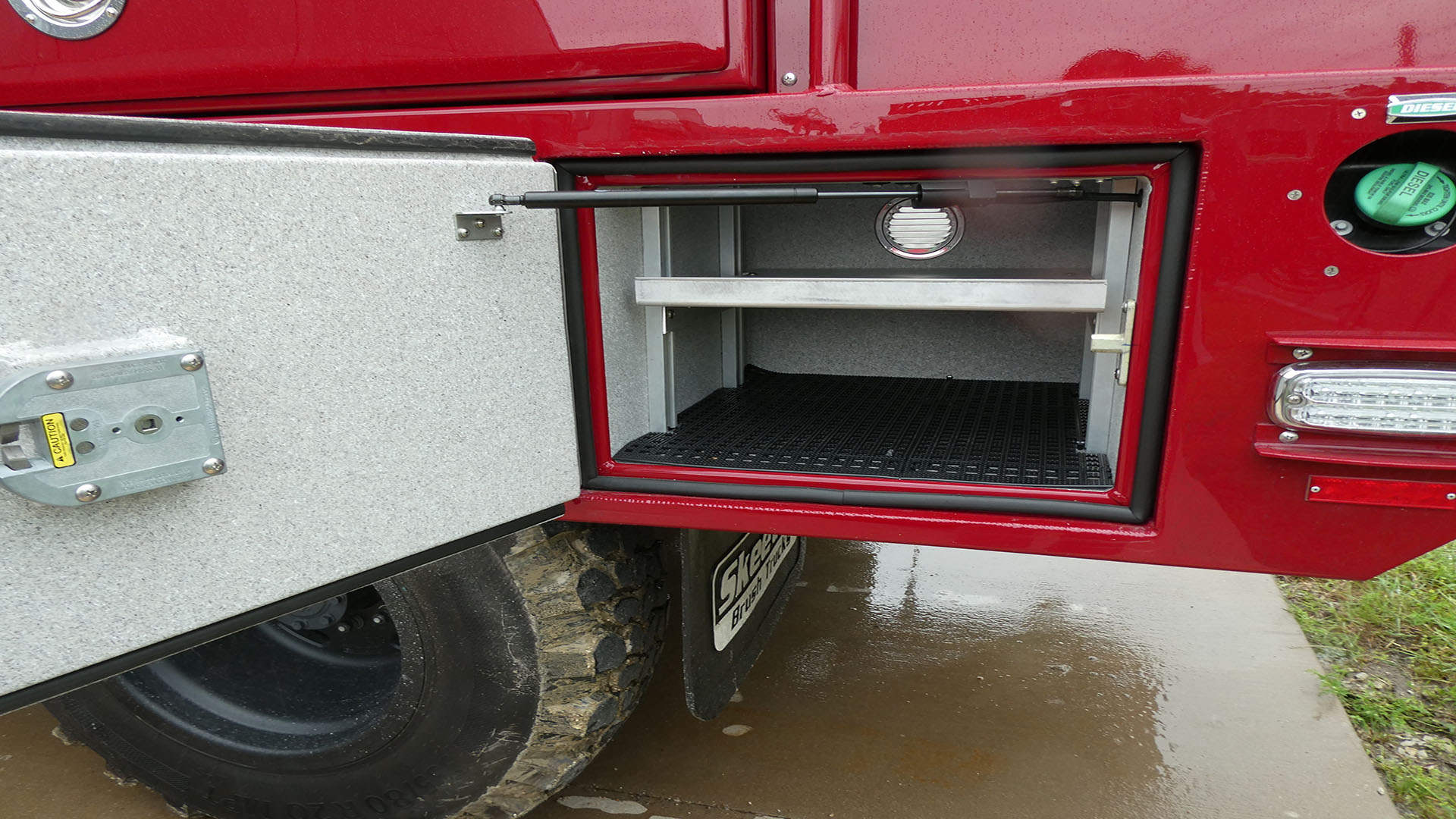

| Cmpt Under Rear Bdy, D/S & P/S, Alum, 20″ W x 15″H x 23″D, Vert Hingd Dr |
| Dividers For Hard Suction, Rear Center Under Body Compartment |

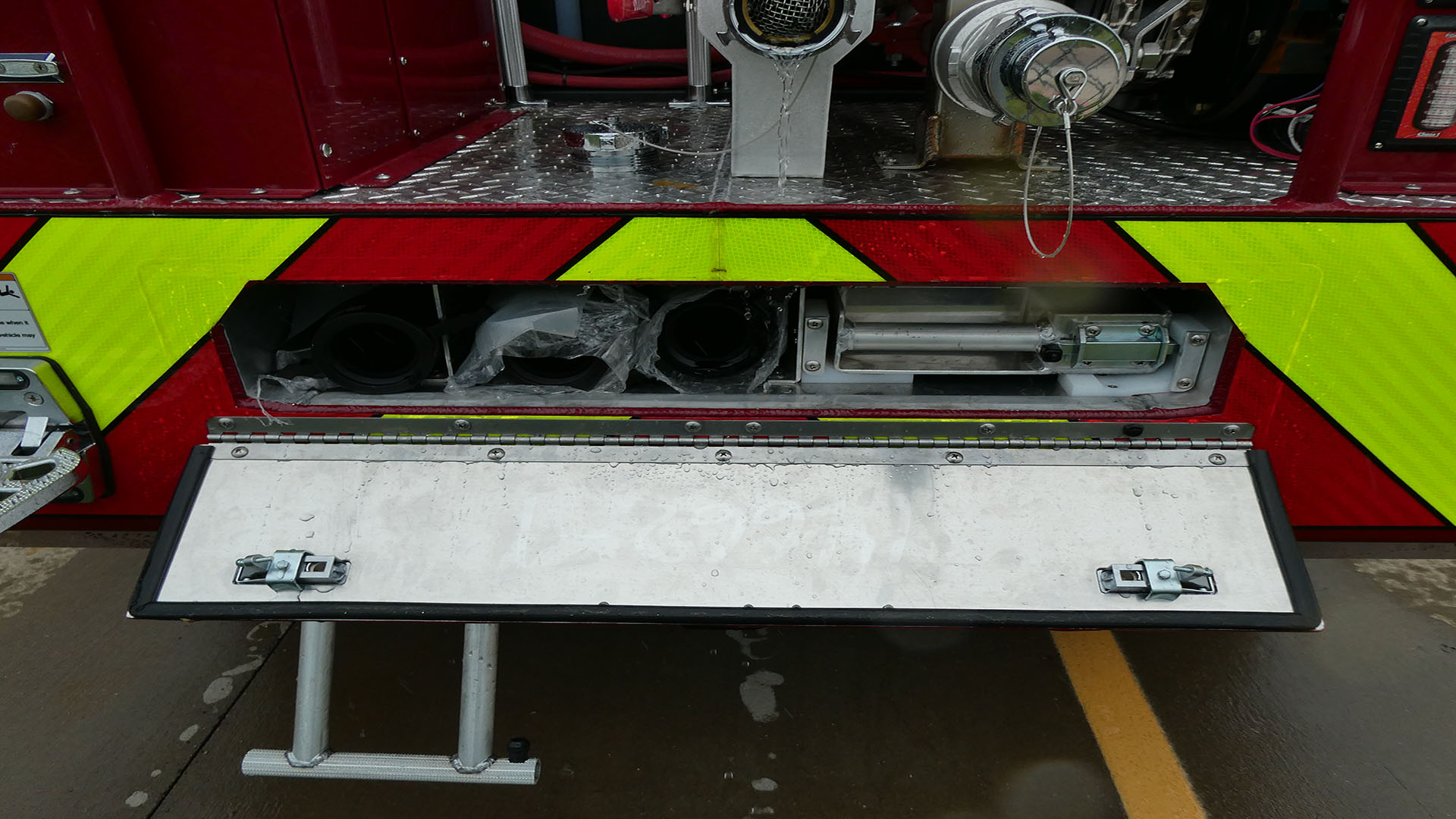

| Rear Center Under Body Compt, Drop Down Door |
| Equipment Tray, Alum, UHMW slide |
| Compartment Ventilation |
| Key Locks, Compartments, Hinged Doors |
| Compartment Lights, LED Strip Light |
| Compartment Light Door Switches, Automatic |
| Door Ajar Light, Flashing LED, Clear Lens |
| Hose Tray, Driver’s Side, 72 in. long |
| Tool Tray, Passenger Side, 72 in. long. |
| I-Zone Brackets |
| Rear Step, Pull out and drop down |
| Step, Sig-4, Folding, Lighted, DS REAR(1) |
| Side Body Access Steps, Stirrup (2) |
| Ground Lights, Under Rear Step, LED (2), Grote #63871 |
| Body Work Lights, LED, (4), Grote #63871 |
| Fuse Box |
| Chassis Harness |
| Wiring Harness, Body Electrical |
| Clearance Lights, LED, DOT |
| License Plate, Mount, Lighting |
| Stop/Tail/Turn Lights, Whelen M6BTT/M6FC |
| Back up Lights, Whelen M6 Series, LED, |
| Scene Light, Combo, Rigid 20″ |
| Scene Light, (6) Rigid Dually |
| Back Up Alarm |
| Whelen Cencom Carbide, Electronic Siren |
| Speaker, Whelen, #SA315P, 100 Watt |

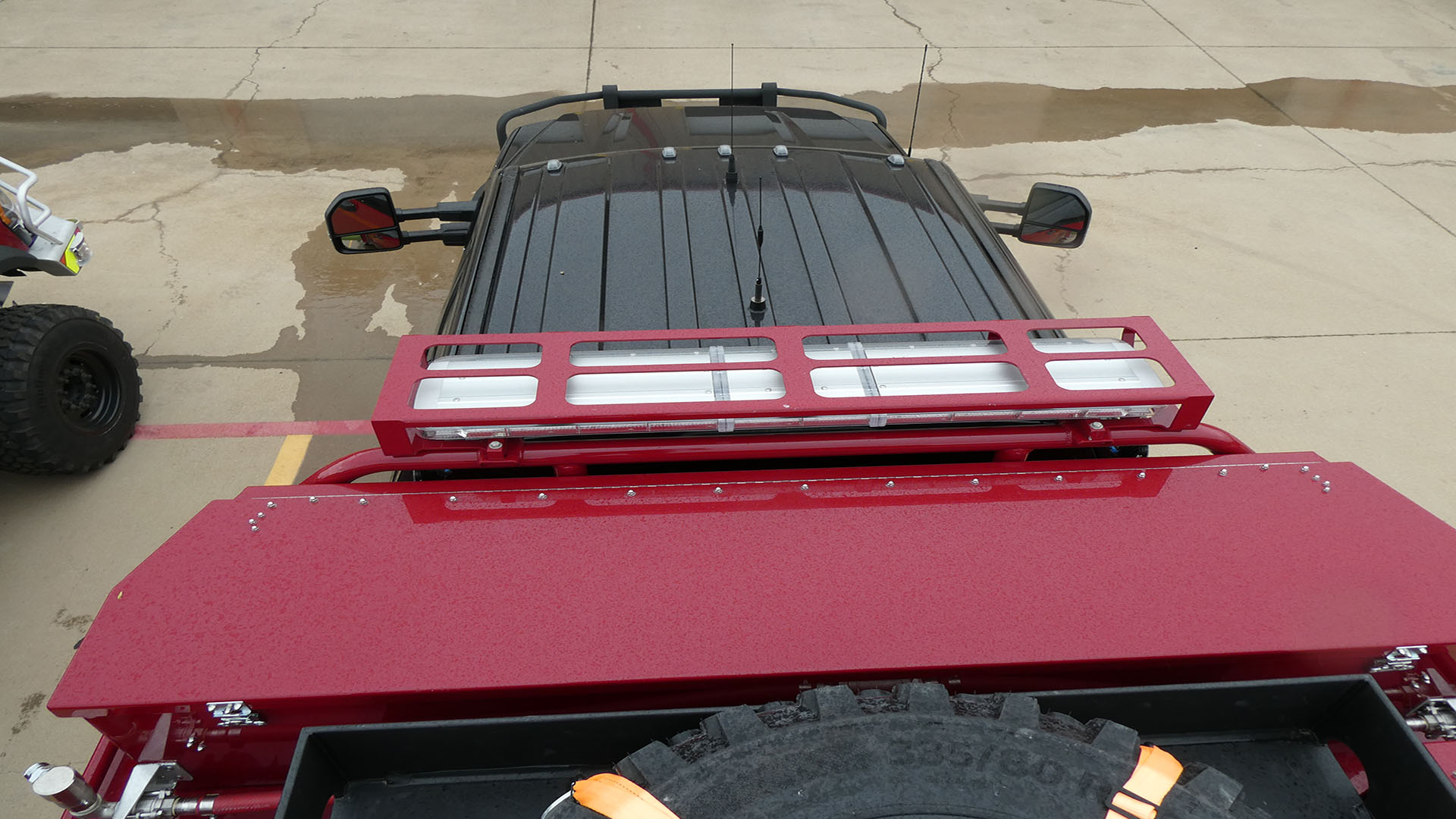

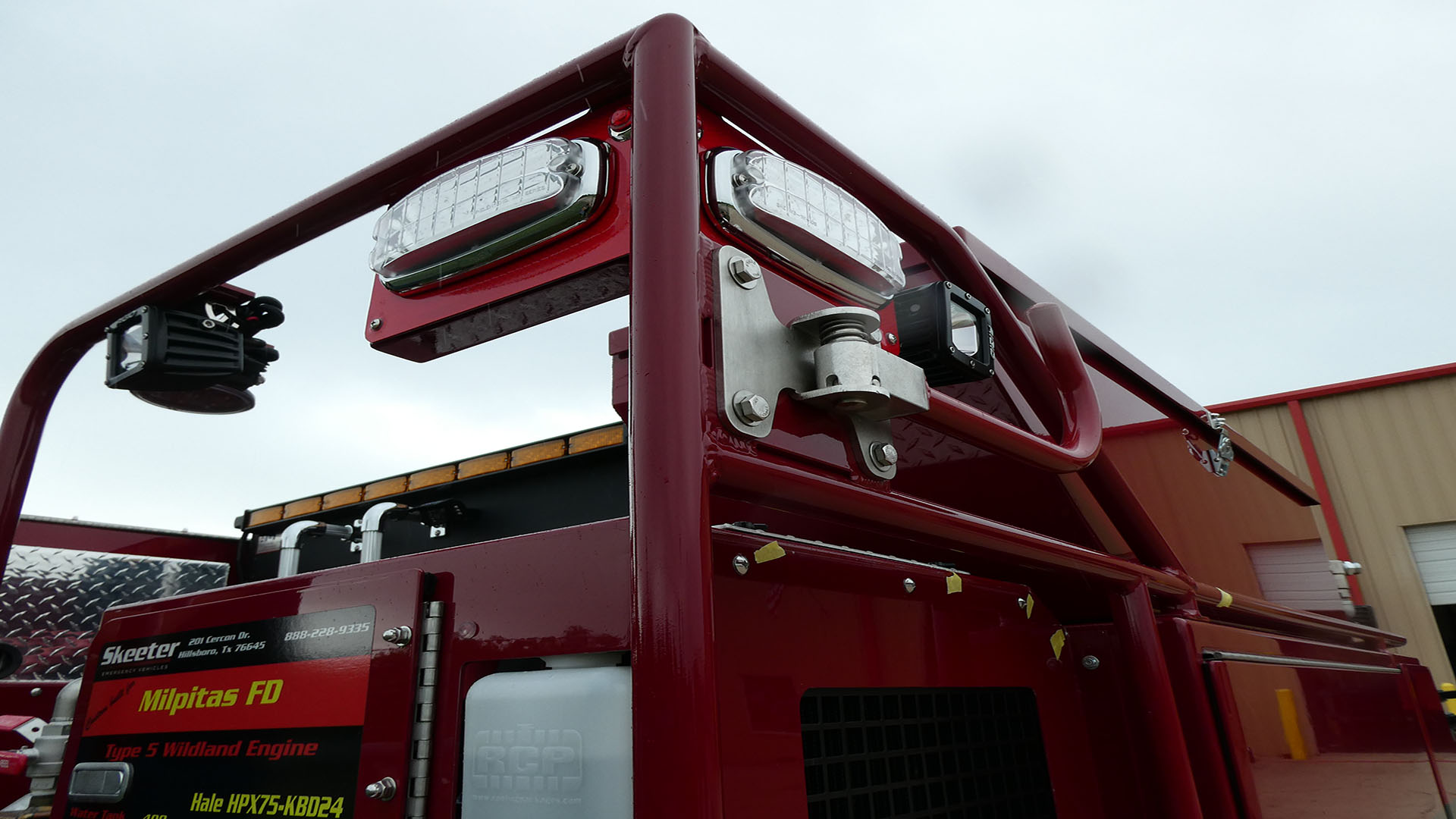

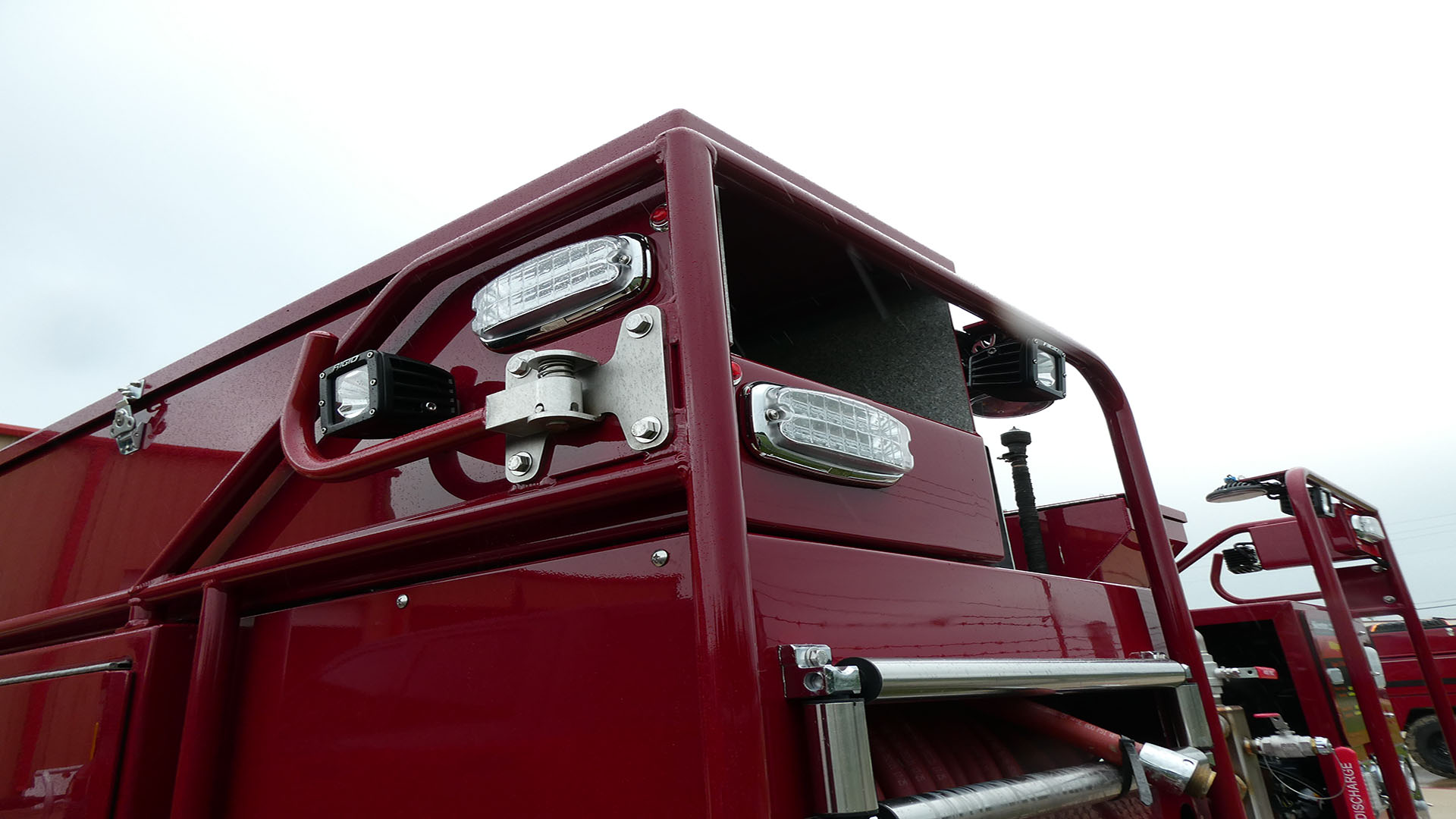

| Lightbar Mounting, Headache Rack, Alum, Enclosure Protection |
| Lightbar, Whelen,Legacy, 54″ |
| Warning Lights, Whelen, M-7 Series (12) Lights |
| Traffic Advisor, Whelen, TAM85 |

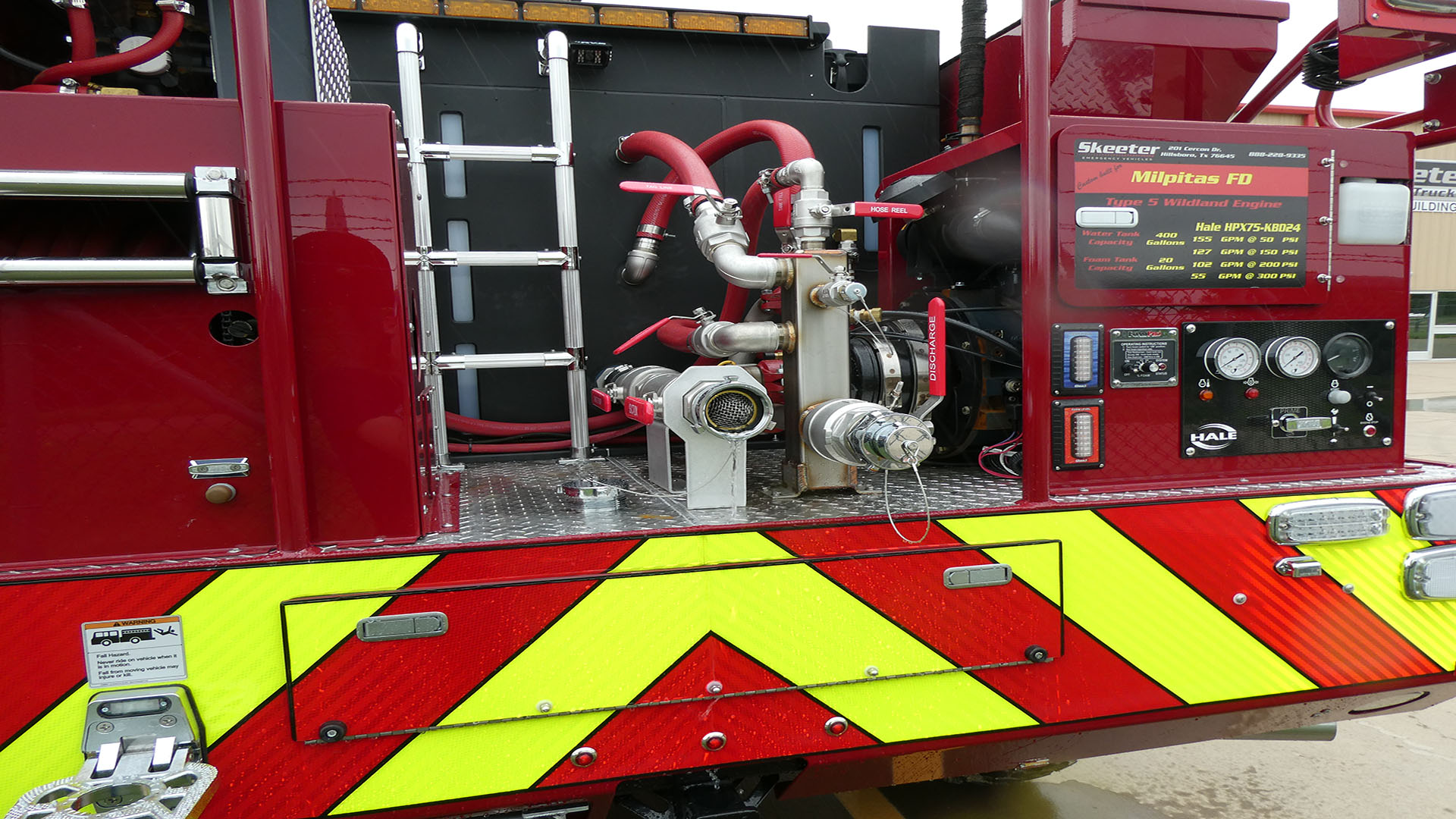

| Pump, Hale, Aux, Diesel, HPX75-KBD 24 Kubota |
| Thermal Relief Valve |
| Standard Stainless Steel Manifold |
| Valves, S/S, Quarter Turn |
| Hose Threads |

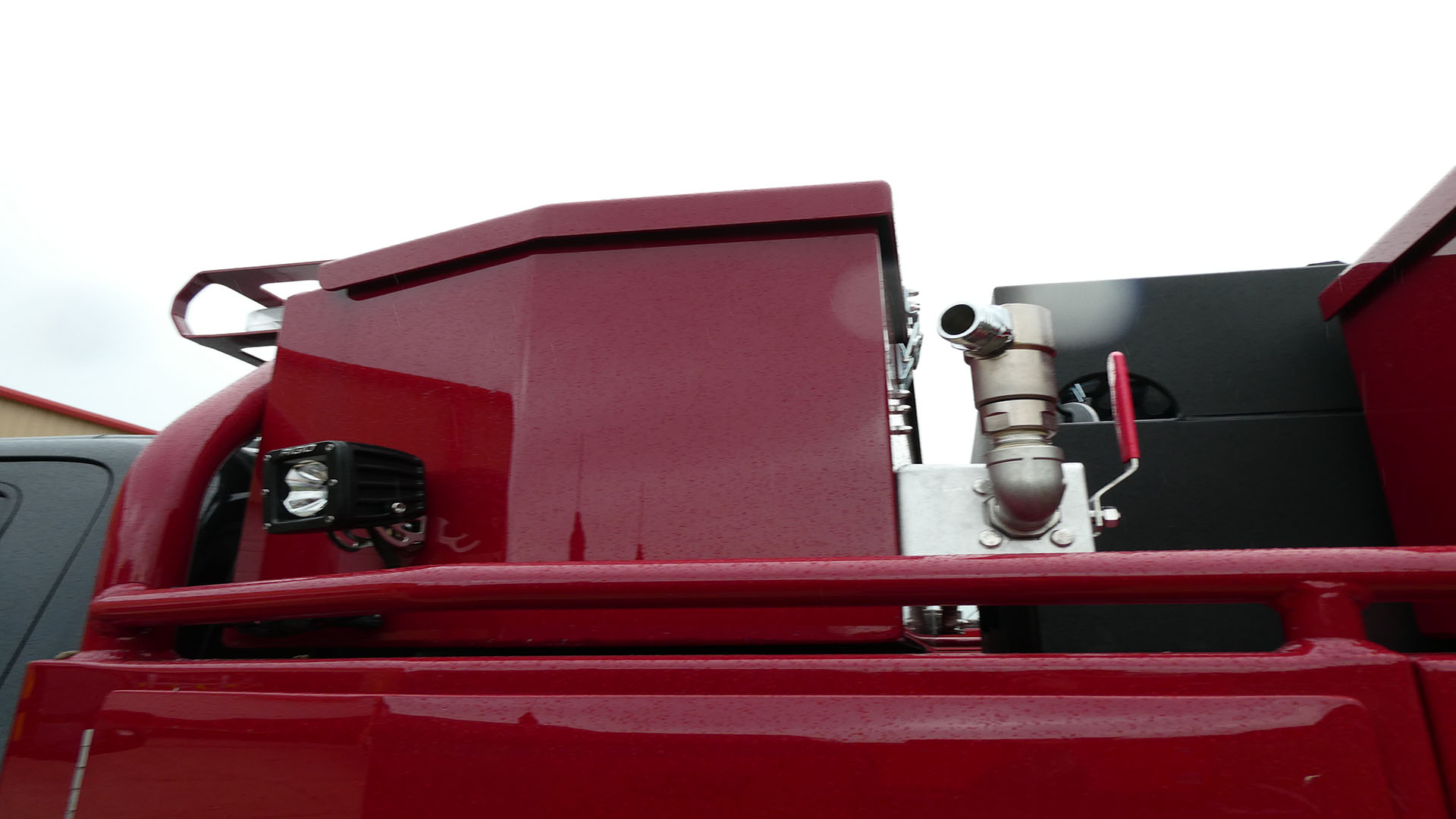

| Exhaust System, Vertical, Rain Cap, Aux Pump |
| Primer, Electric, Aux Pump, Additional or IPOS |
| Pump Enclosure – Diesel Pump |

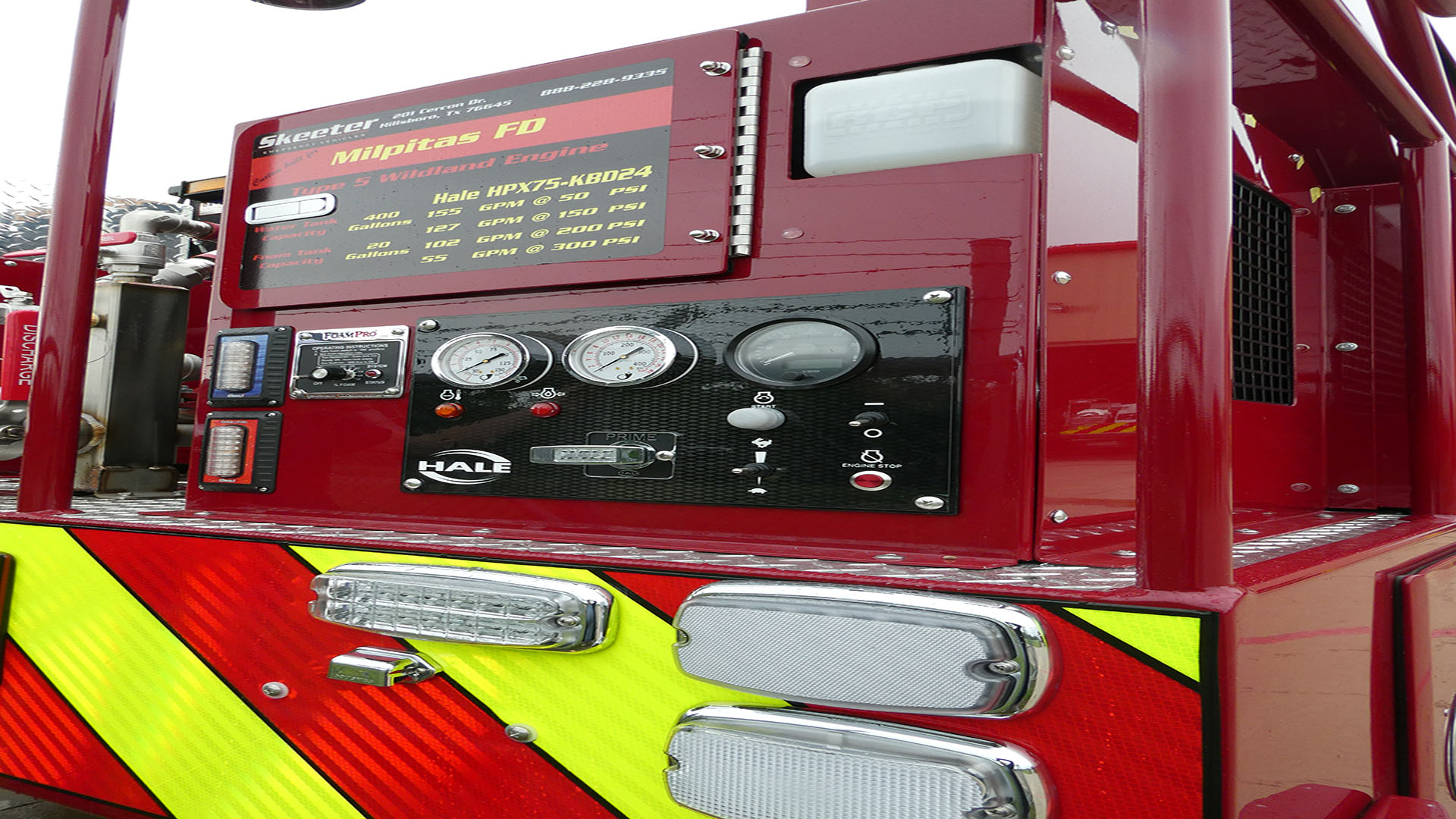

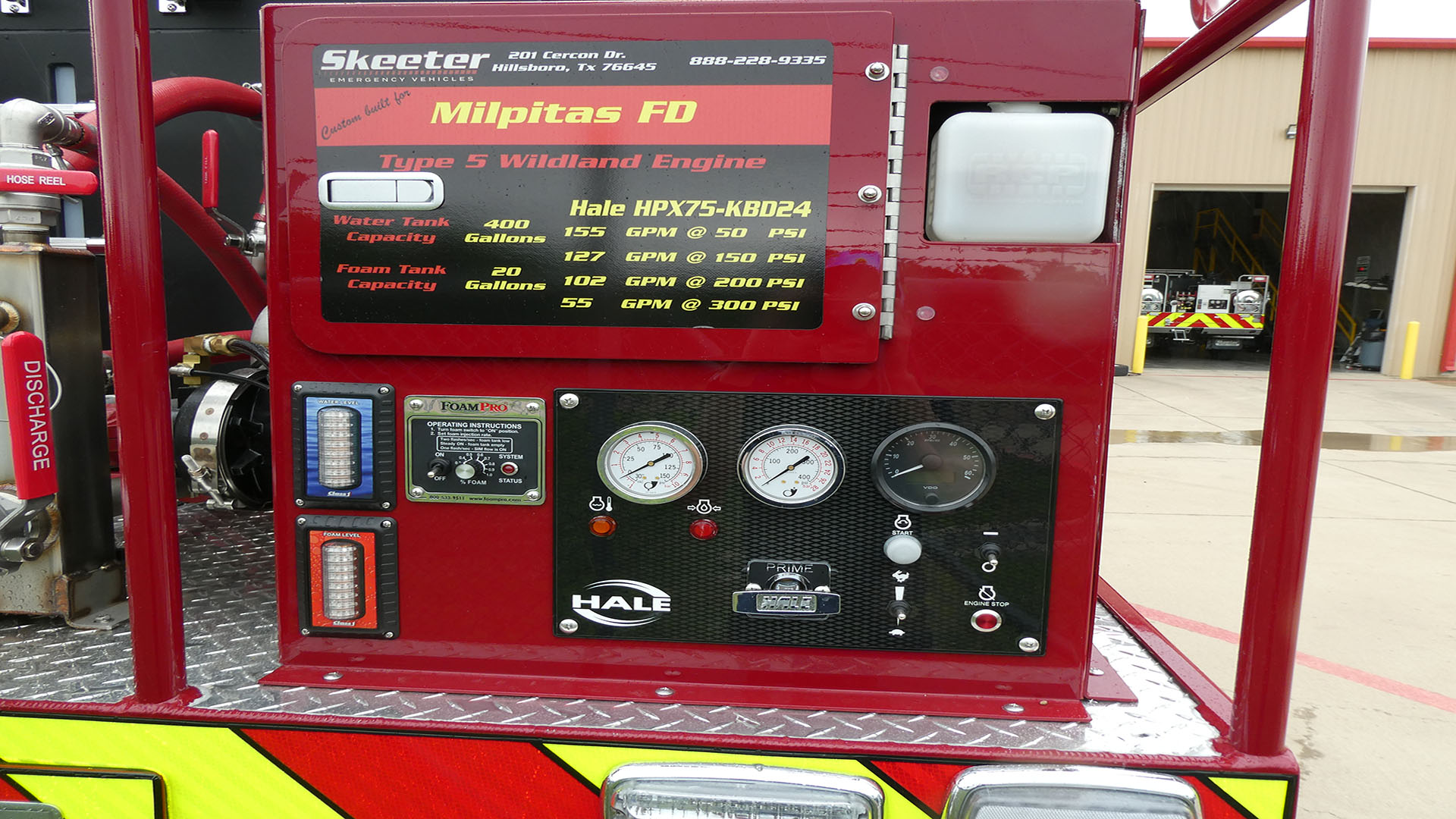

| Pump Control Panel Enclosure |
| Dual Pump Controls (Electronic), Diesel Pump |
| Pump Fuel from Chassis |
| Battery Supply, 12V, Chassis, Master Switch & Solenoid |
| Aux Fire Pump Mntg, P/S Rear, Bolted |
| Pump Engine Oil Drain |
| Pump Drain, Master Drain–Low Point |
| Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl |
| Tank-To-Pump, Water Tank, 2.5″, Install |
| Tank Fill and Cooling Line, Water Tank, 1.5″ Aux Pump |
| Discharge, .75″GH, Rear, Garden Hose Outlet |
| Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap |
| Discharge, 1.5″, Front Bumper |
| Discharge, 1.5″, Front Body (Through Tank) |
| Hose Reel, Hannay, D/S Mount, Elec Rewind, Alum |
| HOSE REEL ENCLOSURE |
| 200 Foot Reel Capacity |
| Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl |
| Nozzle Mounting |
| Hose, Water, 800#, 3/4″ x 200” |
| Roller, Hose Reel, Top |
| Ground Sweep Discharges, Front Bumper |
| Whip Hose Lines, (2) Front Body 1″ x 10′, Booster Hose, 800#, w/cplgs |
| Foam System, FoamPro, 1601, Class A |
| Water Tank Gauge, Class 1, Rear & Cab |
| Water Tank Capacity, 400 Gallons, Poly |
| Water Tank, Specs |
| Water Tank Shape, Rectangular |
| Water Tank, NFPA Compliance |
| Tank Gauge, Translucent Tank Sight Level |
| Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner |
| Overflow, Water Tank, 3″ PVC Pipe, <500G |
| Pump to Tank, Fill Connection, 1.5″, 300 GPM Flow |
| Water Tank Drain Plug, 1.5″ |
| Perimeter Wall Around Tank |
| Foam Tank Capacity, 20 Gallons, Class A, Poly |
| Foam Tank, Fill and Vent, Class A |
| Foam Tank to Foam System, 3/4″ |
| Foam Tank Drain and Valve, 3/4″ |
| Foam Tank Gauge, Class 1, Class A, Rear & Cab |
| Lettering, Cab, 3″ Gold Scotchcal, 50 Letters |
| Door Graphic Emblems, (2) Custom |
| No Cab Roof Lettering |
| Stripe, Cab/Body, Single Reflective, 4″ |

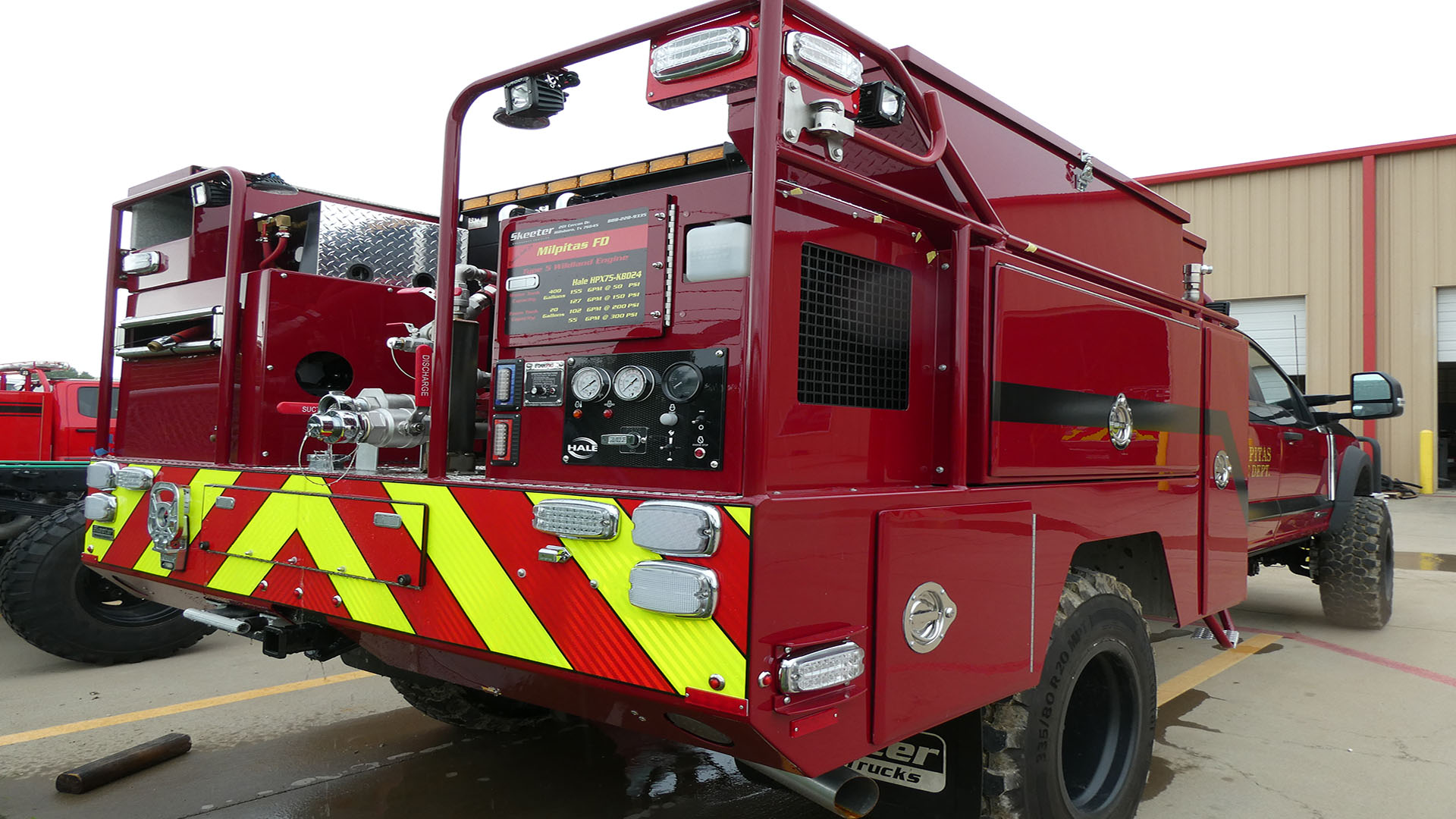

| Stripe, Reflective, SCOTCHLITE, Chevron, Rear |
| Capacities Placard, Reflective |
| Suction Hose |
| Barrel Suction Strainer |
- CHASSIS
-
Paint Layout (Cab Repaint) Industrial Quality Window Tint (SPECIFY) Ford F550 – 4×4 – Diesel – 4 Door (2022.3) Chassis 60″ CA Power Package (Electric Windows, Locks, Mirrors) Bumper Platform,, Small Truck Bumper Hose Compartment – Center (Without Lid) Suspension System, FORD, 4×4, 6″, 4 Link Vehicle Dynamics Correction Kit, Ford F-450/550, Lifted Tires and Wheels, Super Single 335/80 R20 (4) Spare Tire and Wheel, Super Single 335/80 R20 (1) Spare Tire, Top of Tank Skeeter Aluminum Custom Bumper, Bed Lined BLACK Mud Flaps, Rear Wheels, SBT Logo 1/4″ Skid Protection Panel Transfer Case, Skid Protection Panel Electric Fold Down Steps, Amp Research Cab Console, Poly, Custom Warn Synthetic Winch Rope, 100′ x 3/8″, 16,500 lbs. Winch, Warn, #M16ti, Electric, Front Mount, 16,500# Battery Master Disconnect, 12V FRC SoBrite LED Off-Road Lights, 6′ (2) Ground Lights, Cab, 4 Door, LED STRIPS GPS Unit Tilt Meter Back-Up Camera, Rear View Safety, (2) cameras Radio, Fire, Installation, Purchaser Supplied Radio, Fire, Installation, Purchaser Supplied – Antenna Only - BODY
-
Receiver, Rear, Winch/Rope/Trailer, 10,000# Tank Access Ladder, 1″ Aluminum Tubing Rescue Side, Alum, 114″ x 96″, 60CA Painted Finish Body and Compartments/Trays Front of Body, 22 deg Corners Transverse Compartment (Rescue-Side) 18″W Transverse Tray Compartment, Drivers Side, Lift-Up Door Compartment, Passengers Side, Lift-Up Door Cmpt Under Rear Bdy, D/S & P/S, Alum, 20″ W x 15″H x 23″D, Vert Hingd Dr Dividers For Hard Suction, Rear Center Under Body Compartment Rear Center Under Body Compt, Drop Down Door Equipment Tray, Alum, UHMW slide Compartment Ventilation Key Locks, Compartments, Hinged Doors Compartment Lights, LED Strip Light Compartment Light Door Switches, Automatic Door Ajar Light, Flashing LED, Clear Lens Hose Tray, Driver’s Side, 72 in. long Tool Tray, Passenger Side, 72 in. long. I-Zone Brackets Rear Step, Pull out and drop down Step, Sig-4, Folding, Lighted, DS REAR(1) Side Body Access Steps, Stirrup (2) Ground Lights, Under Rear Step, LED (2), Grote #63871 Body Work Lights, LED, (4), Grote #63871 - ELECTRICAL
-
Fuse Box Chassis Harness Wiring Harness, Body Electrical Clearance Lights, LED, DOT License Plate, Mount, Lighting Stop/Tail/Turn Lights, Whelen M6BTT/M6FC Back up Lights, Whelen M6 Series, LED, Scene Light, Combo, Rigid 20″ Scene Light, (6) Rigid Dually Back Up Alarm Whelen Cencom Carbide, Electronic Siren Speaker, Whelen, #SA315P, 100 Watt Lightbar Mounting, Headache Rack, Alum, Enclosure Protection Lightbar, Whelen,Legacy, 54″ Warning Lights, Whelen, M-7 Series (12) Lights Traffic Advisor, Whelen, TAM85 - SUPPRESION
-
Pump, Hale, Aux, Diesel, HPX75-KBD 24 Kubota Thermal Relief Valve Standard Stainless Steel Manifold Valves, S/S, Quarter Turn Hose Threads Exhaust System, Vertical, Rain Cap, Aux Pump Primer, Electric, Aux Pump, Additional or IPOS Pump Enclosure – Diesel Pump Pump Control Panel Enclosure Dual Pump Controls (Electronic), Diesel Pump Pump Fuel from Chassis Battery Supply, 12V, Chassis, Master Switch & Solenoid Aux Fire Pump Mntg, P/S Rear, Bolted Pump Engine Oil Drain Pump Drain, Master Drain–Low Point Intake, Gated, 2.5″FM, Rear, w/2.5″ Plug, Aux Pump, Direct Vlv Cntrl Tank-To-Pump, Water Tank, 2.5″, Install Tank Fill and Cooling Line, Water Tank, 1.5″ Aux Pump Discharge, .75″GH, Rear, Garden Hose Outlet Discharge, 2.5″, Rear, 2.5″FM x 1.5″M, 1.5″ cap Discharge, 1.5″, Front Bumper Discharge, 1.5″, Front Body (Through Tank) Hose Reel, Hannay, D/S Mount, Elec Rewind, Alum HOSE REEL ENCLOSURE 200 Foot Reel Capacity Hose Reel Discharge, 1″ Valve and Flex-Hose, Local Cntrl Nozzle Mounting Hose, Water, 800#, 3/4″ x 200” Roller, Hose Reel, Top Ground Sweep Discharges, Front Bumper Whip Hose Lines, (2) Front Body 1″ x 10′, Booster Hose, 800#, w/cplgs Foam System, FoamPro, 1601, Class A Water Tank Gauge, Class 1, Rear & Cab Water Tank Capacity, 400 Gallons, Poly Water Tank, Specs Water Tank Shape, Rectangular Water Tank, NFPA Compliance Tank Gauge, Translucent Tank Sight Level Fill Tower, Water Tank, 12″ x 12″ x 6″, D/S Rear Corner Overflow, Water Tank, 3″ PVC Pipe, <500G Pump to Tank, Fill Connection, 1.5″, 300 GPM Flow Water Tank Drain Plug, 1.5″ Perimeter Wall Around Tank Foam Tank Capacity, 20 Gallons, Class A, Poly Foam Tank, Fill and Vent, Class A Foam Tank to Foam System, 3/4″ Foam Tank Drain and Valve, 3/4″ Foam Tank Gauge, Class 1, Class A, Rear & Cab - GRAPHICS
-
Lettering, Cab, 3″ Gold Scotchcal, 50 Letters Door Graphic Emblems, (2) Custom No Cab Roof Lettering Stripe, Cab/Body, Single Reflective, 4″ Stripe, Reflective, SCOTCHLITE, Chevron, Rear Capacities Placard, Reflective - EQUIPMENT
-
Suction Hose Barrel Suction Strainer
